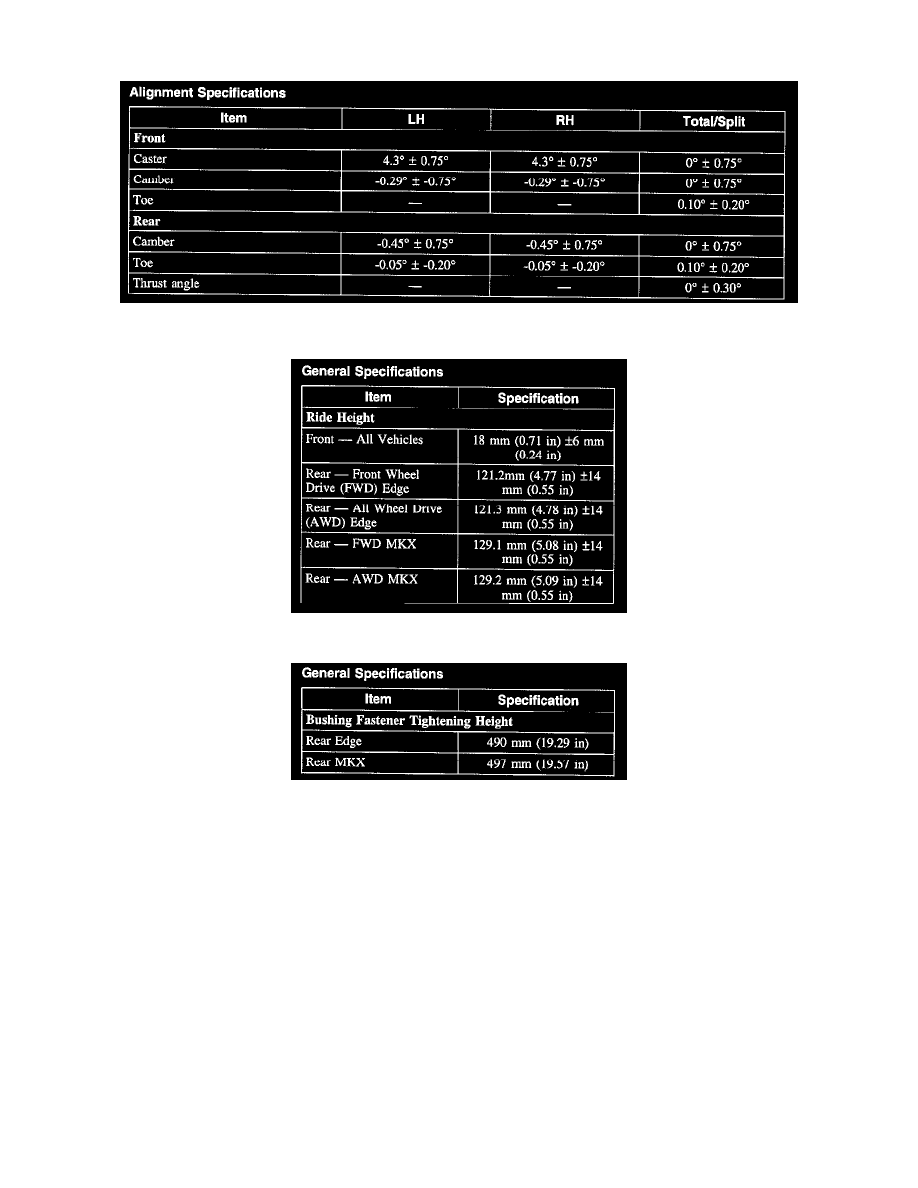

Alignment: Specifications

Alignment Specifications

Ride Height

Bushing Fastener Tightening Height

General Specifications

General Specifications
