Alignment (Alignment Specifications)
- Make
- Lincoln
- Model
- MKX AWD
- Engine
- V6-3.5L
- Year
- 2007
- Section
- Alignment › Specifications › Alignment Specifications
Steering and SuspensionAlignment Specifications · page 1 of 6

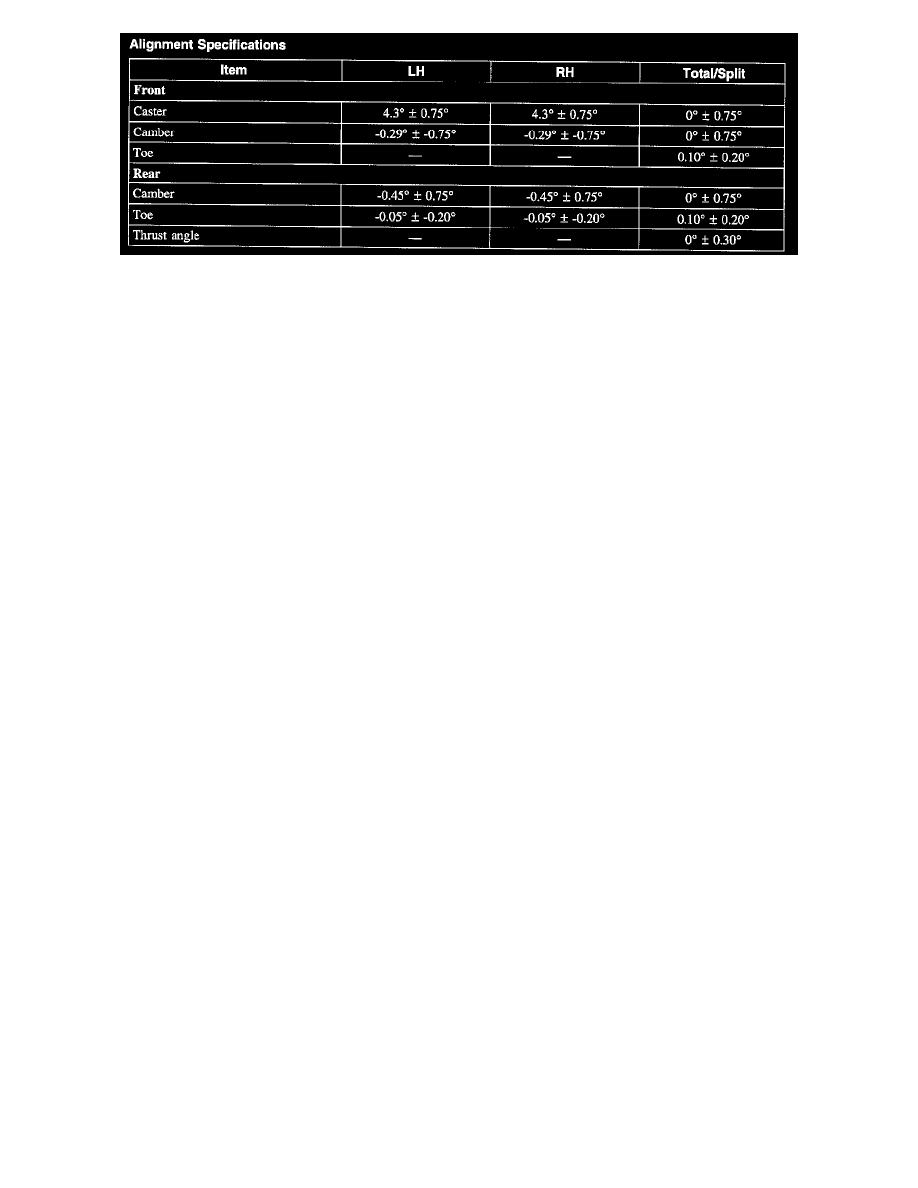

Alignment (Alignment Specifications) – diagram from the Steering and Suspension chapter of the Lincoln MKX AWD V6-3.5L (2007) factory manual.
Alignment Specifications
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
