Workshop Manuals Factory service & repair Lincoln
Lincoln MKZ AWD V6-3.5L (2008)10 · Steering and Suspension
10 · Steering & suspension

Alignment (Alignment Specifications): Specifications

Make
Lincoln
Model
MKZ AWD
Engine
V6-3.5L
Year
2008
Section
Alignment › Specifications › Alignment Specifications
Steering and SuspensionAlignment Specifications · page 1 of 3
background image

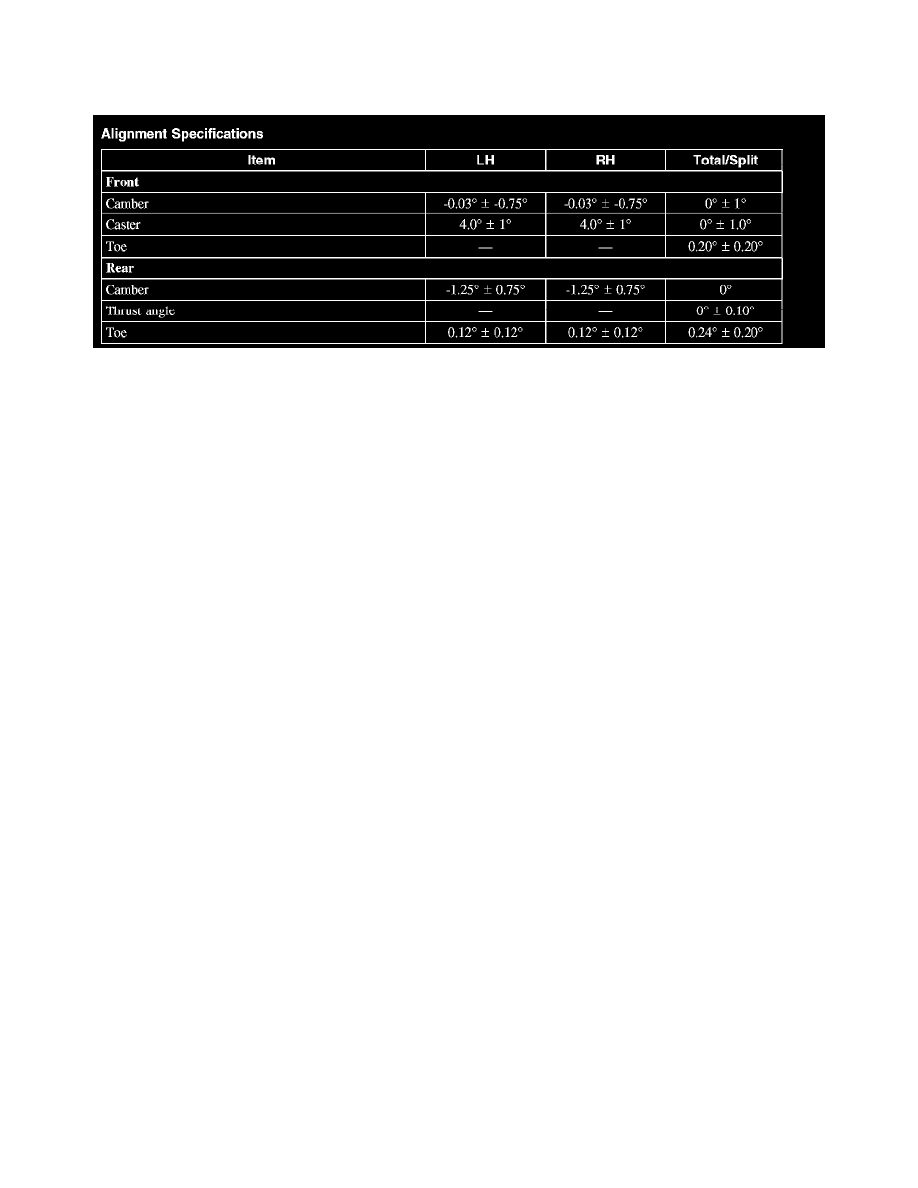

Alignment: Specifications
Alignment Specifications

Alignment Specifications



Alignment Specifications

Pinch or Ctrl + scroll to zoom. Double-tap to reset.
