Flywheel: Diagrams
- Make
- Lincoln
- Model
- MKZ AWD
- Engine
- V6-3.5L VIN T
- Year
- 2007
- Section
- Flywheel › Diagrams
Transmission and DrivetrainDiagrams
Flywheel: Diagrams

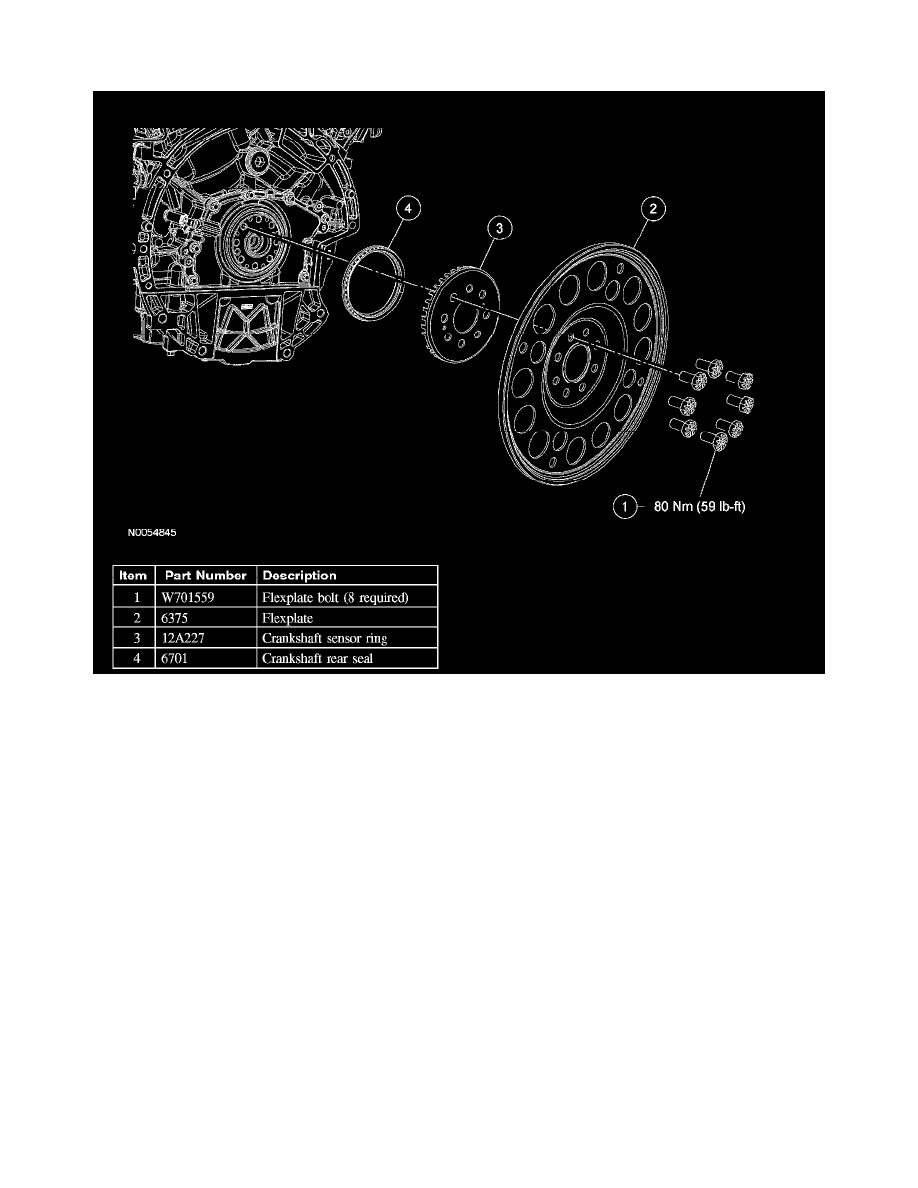

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal
1. For additional information, refer to the procedures.
