Navigator 4WD V8-5.4L (2010)
Vehicle Lifting: Service and Repair
Jacking and Lifting
Jacking Points - Front
WARNING: Shut off the electrical power to the air suspension system prior to hoisting or jacking an air suspension equipped vehicle. Failure
to do so may result in unexpected inflation or deflation of the air springs, which may result in shifting of the vehicle during these operations.
Failure to follow this instruction may result in serious personal injury.
WARNING: Turn off (disable) the power running boards (if equipped) before jacking, lifting or placing any object under the vehicle.
Never place your hand between the power running board and the vehicle. Extended power running boards will retract when doors are closed.
Failure to follow these instructions may result in serious personal injury.
WARNING: When jacking or lifting the vehicle, block all wheels remaining on the ground. Set the parking brake if the rear wheels will remain
on the ground. These actions help prevent unintended vehicle movement. Failure to follow these instructions may result in serious personal
injury.
WARNING: Never get underneath a vehicle that is supported only by a jack. The jack could unintentionally lower. Always support vehicle
with floor stands. Failure to follow these instructions may result in serious personal injury.
WARNING: Only raise the vehicle when positioned on a hard, level surface. Attempting to raise the vehicle on an uneven or soft surface may
result in vehicle slipping or falling from the jack or jackstand. Failure to follow this instruction may result in serious personal injury.
WARNING: Identify the correct jacking points by locating the triangle stamped into the uni-body sheet metal or vehicle frame. Raising a
vehicle in any other location may result in vehicle shifting or falling. Failure to follow this instruction may result in serious personal injury.
NOTICE: The jack provided with the vehicle is intended to be used in an emergency for changing a deflated tire. To avoid damage to the
vehicle, never use the jack to hoist the vehicle for any other purpose.
NOTICE: To prevent possible damage to the underbody, do not drive the vehicle onto the drive-on lift without first checking for possible
interference.
NOTICE: Damage to the suspension, exhaust or steering linkage components may occur if care is not exercised when positioning the hoist
adapters prior to lifting the vehicle.
Disable the air suspension system. Refer to Suspension Control ( Automatic - Electronic Level ).

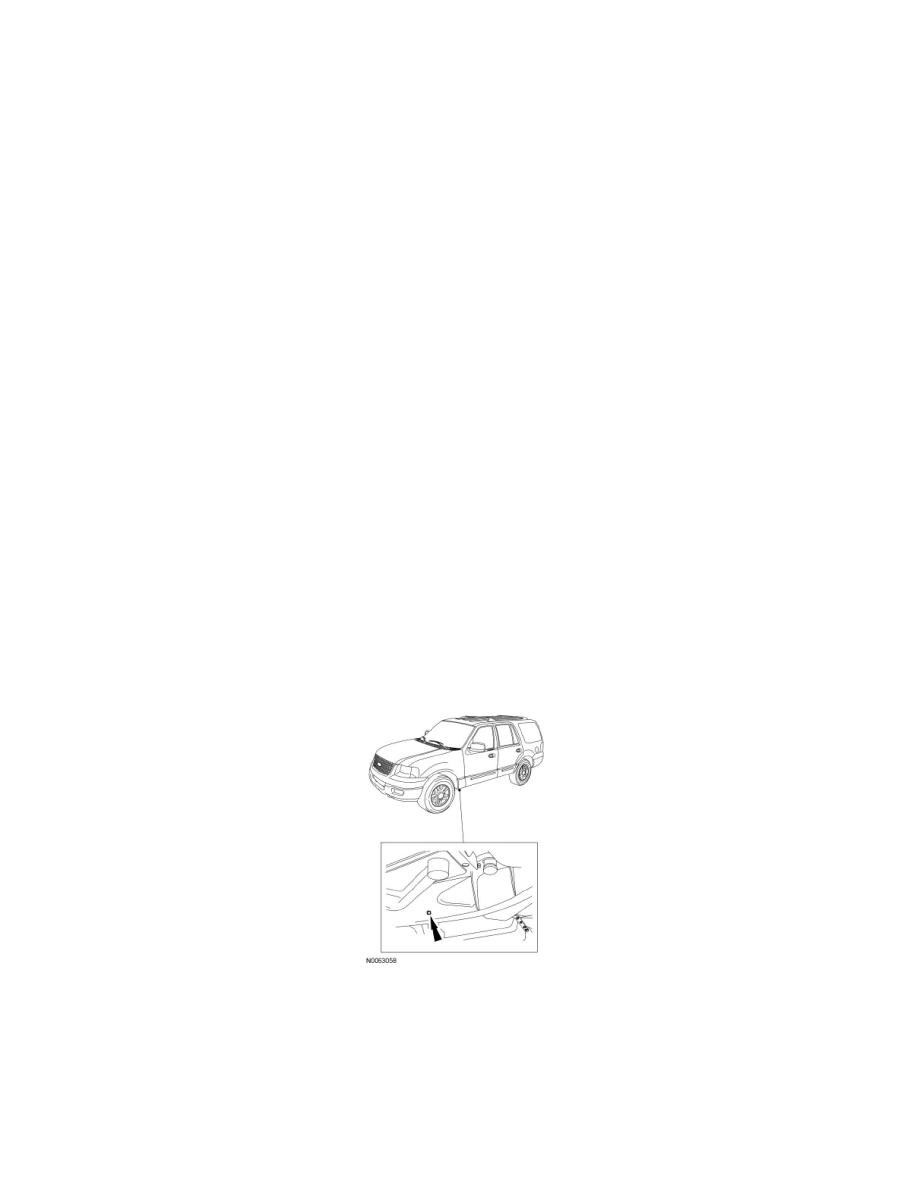

The front jacking point is indicated by an arrow cutout in the frame, located behind the front tire and wheel.
After the vehicle has been lowered, enable the air suspension system. Refer to Suspension Control ( Automatic - Electronic Level ).
Jacking Points - Rear
