Navigator 4WD V8-5.4L (2010)

Page 1
background image

Flex Plate: Specifications

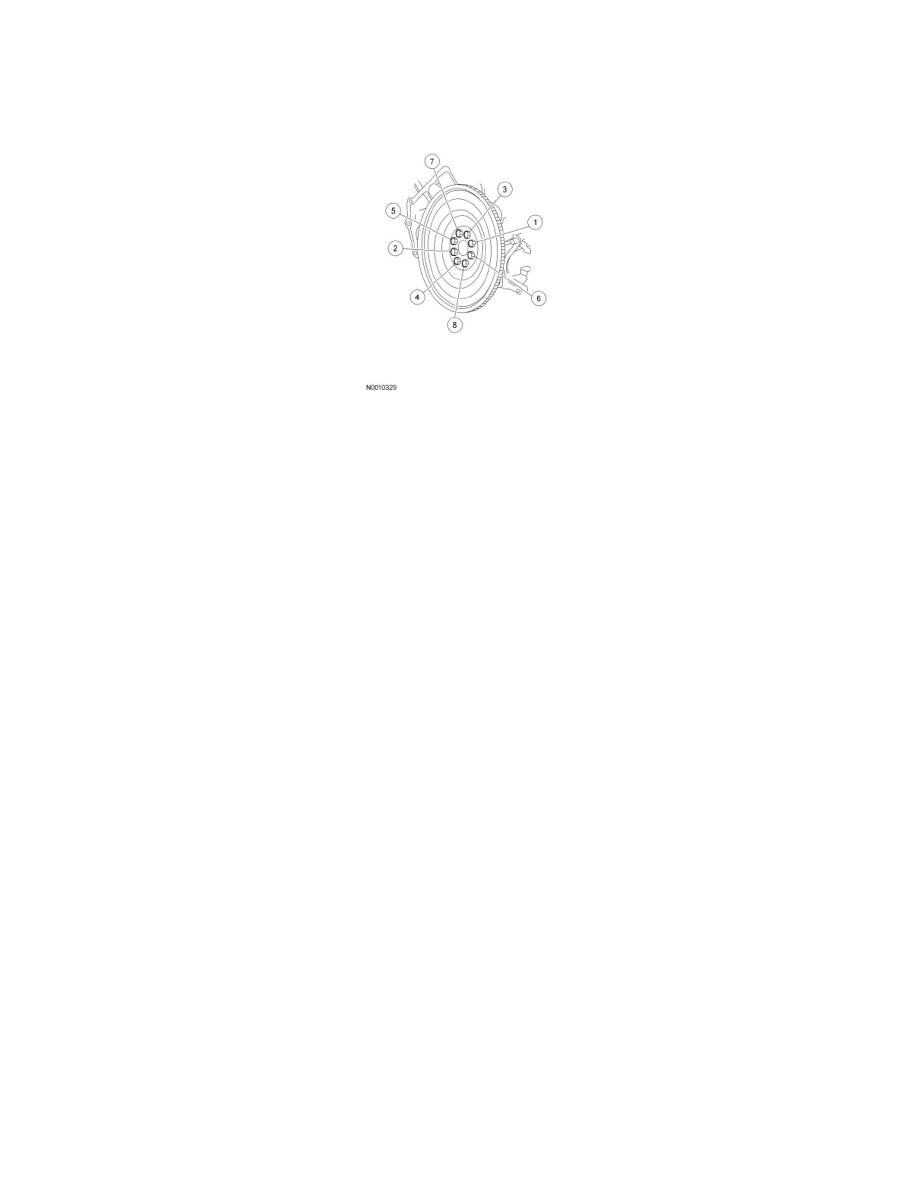

Install the flexplate and the 8 bolts in the sequence shown.
Tighten to.......................................................................................................................................................................................................80 Nm (59 lb-ft).
