Page 2
background image

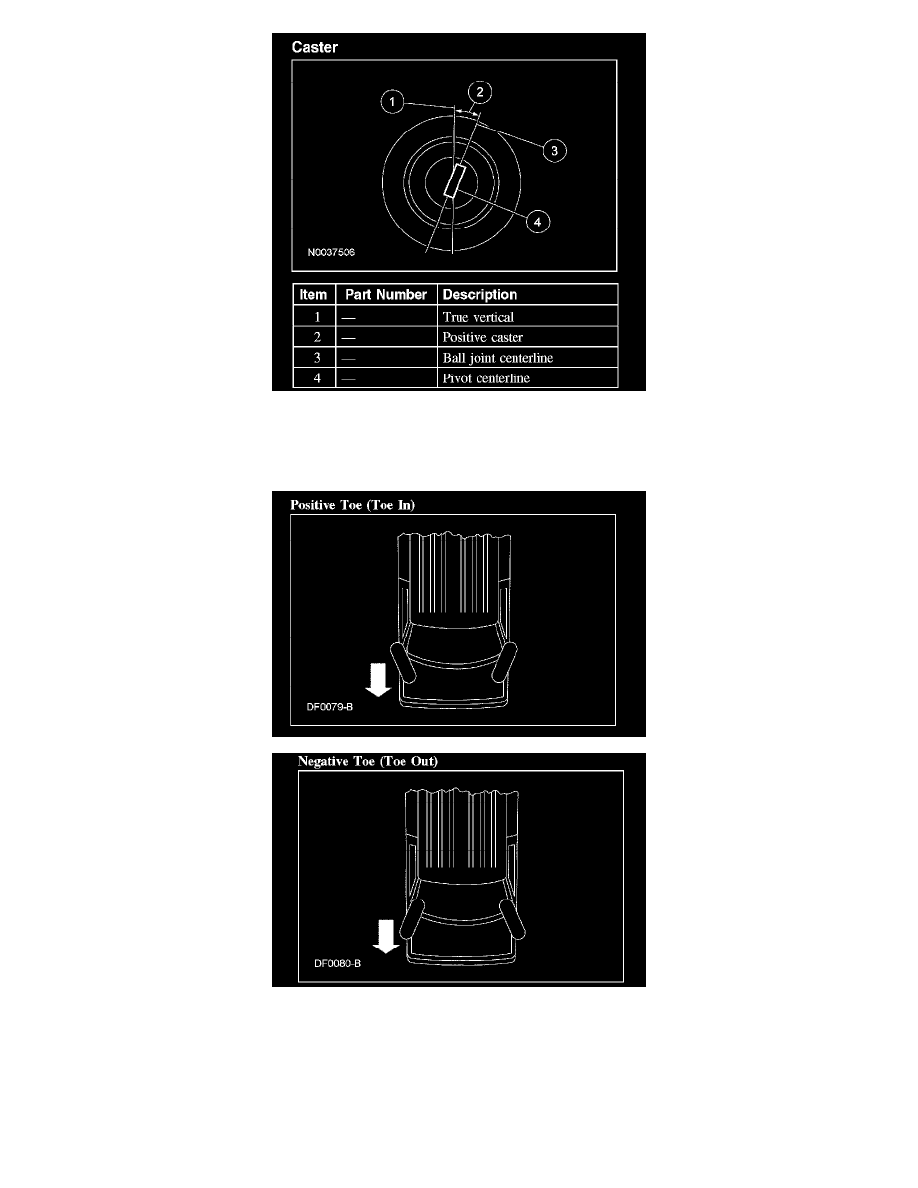

Caster is the deviation from vertical of an imaginary line drawn through the ball joints when viewed from the side. The caster specifications will give
the vehicle the best directional stability characteristics when loaded and driven. The caster setting is not related to tire wear.

Toe

The vehicle toe setting affects tire wear and directional stability.

Incorrect Thrust Angle (Dogtracking)
