Town Car V8-4.6L VIN V Flex Fuel (2006)

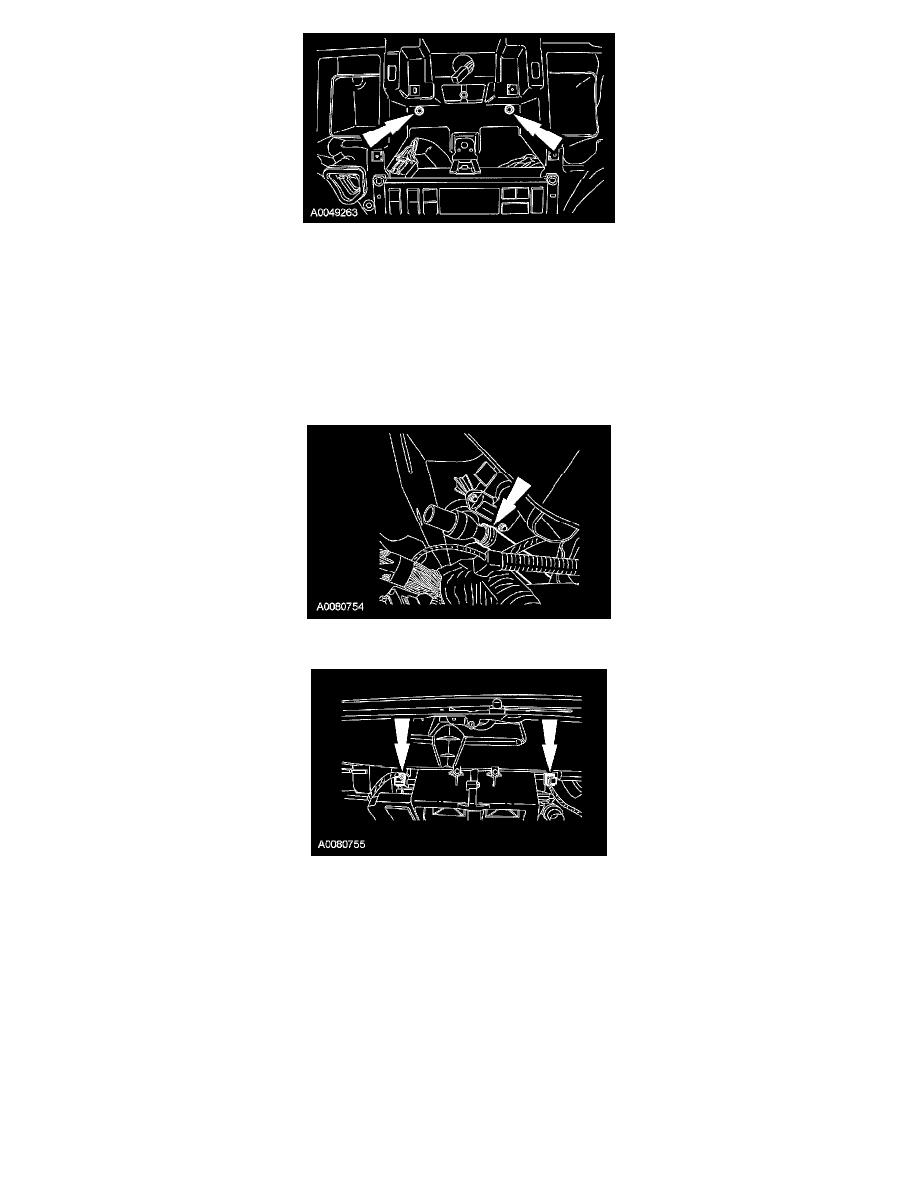

3. Working through the audio unit opening, remove the screws.
4. Remove the 2 LH demister screws.
5. Remove the LH demister.
6. Remove the 3 LH panel duct screws.
7. Remove the LH panel duct.
8. Remove the 2 RH demister screws.
9. Remove the RH demister.
10. Remove the 2 RH panel duct screws.
11. Remove the RH panel duct.
12. Remove the instrument panel bracket screw and the instrument panel bracket.
13. Disconnect the in-vehicle temperature sensor aspirator hose.
14. Disconnect the mode door actuator electrical connectors.
15. Remove the 4 plenum assembly screws.
16. Remove the plenum assembly.
17. To assemble, reverse the disassembly procedure.
