303-01 Engine › In-vehicle repair › Flexplate
EngineFlexplate

Flexplate

Section 303-01 · In-vehicle repair · revised 06/12/2006

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  2. Remove the transmission. For additional information, refer to Section 307-01.
  3. Remove the 6 bolts and the flexplate.

Installation

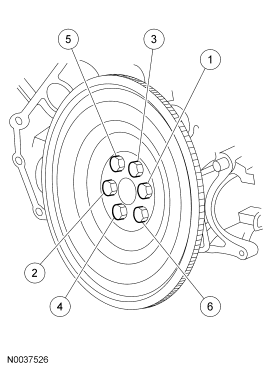

  1. Position the flexplate and loosely install the 6 bolts. Tighten the bolts in the sequence shown to 80 Nm (59 lb-ft).
    Step 1: Position the flexplate and loosely install the 6 bolts. Tighten the bolts in the sequence shown to 80 Nm (59 lb-
  2. Install the transmission. For additional information, refer to Section 307-01.
