Zephyr V6-3.0L VIN 1 (2006)
Brake Bleeding: Service and Repair
Brake System Bleeding

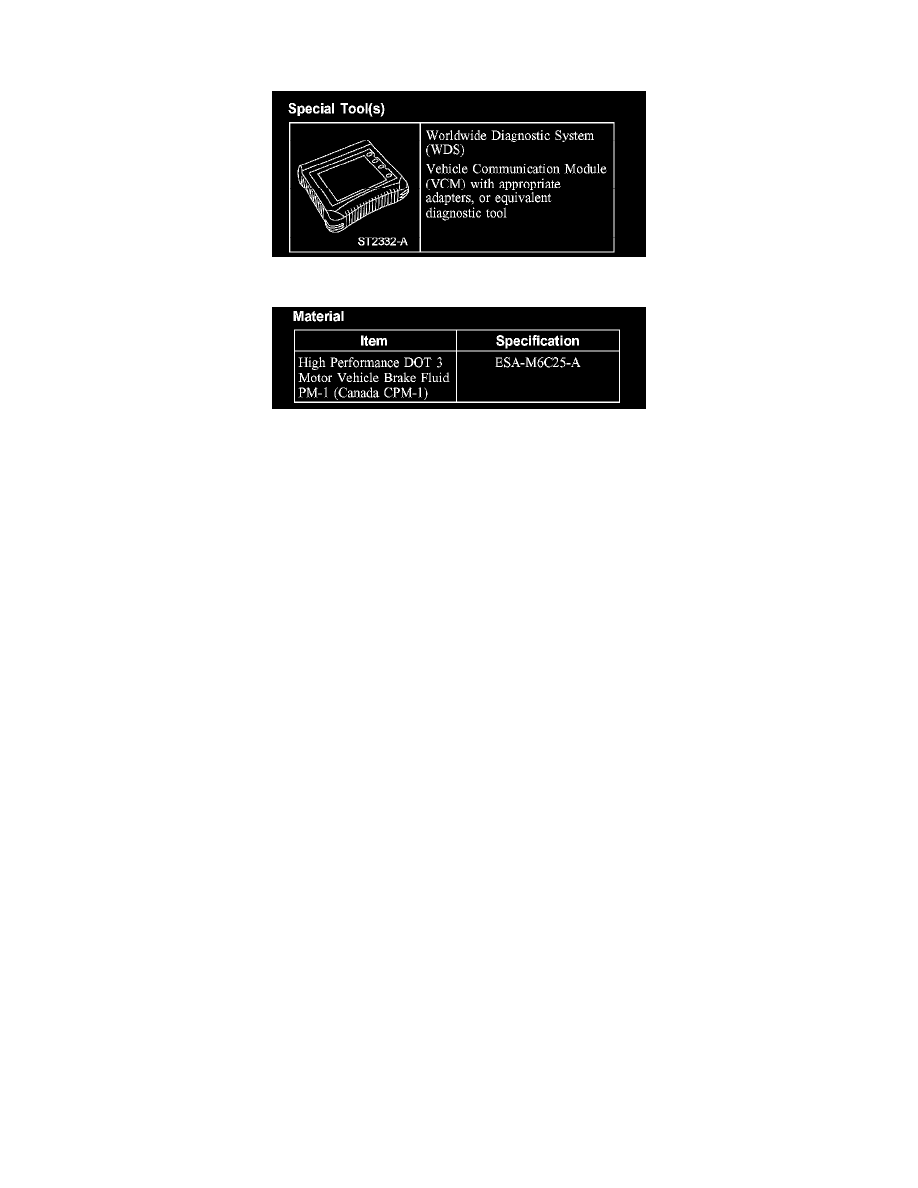

Special Tool(s)
Material
Anti-Lock Brakes Bleed
WARNING: Use of any other than the approved DOT 3 brake fluid will cause permanent damage to brake components and will render the
brakes inoperative. Failure to follow these instructions may result in personal injury.
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If
brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink
water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the master cylinder reservoir filled with
the specified brake fluid. Never reuse the brake fluid that has been drained from the hydraulic system.
CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with
water.
NOTE: Bleeding the hydraulic control unit (HCU) is required only when removing or installing the HCU, master cylinder or opening the lines to the
HCU.
1. NOTE: Carrying out the System Bleed function drives trapped air from the HCU. Subsequent bleeding removes the air from the brake hydraulic
system through the bleeder screws.
NOTE: Adequate voltage to the HCU module is required during the anti-lock control portion of the system bleed.
Connect the diagnostic tool.
2. Access the system bleed function. Go to the Tool Tab-Chassis-Braking-ABS Service Bleed and follow the directions on the diagnostic tool.
3. Manually bleed the brake hydraulic system.
4. Repeat the procedure carrying out a total of 2 diagnostic tool cycles and 2 manual bleed cycles.
Manual Bleed
WARNING: Use of any other than the approved DOT 3 brake fluid will cause permanent damage to brake components and will render the
brakes inoperative. Failure to follow these instructions may result in personal injury.
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If
brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink
water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the master cylinder reservoir filled with
the specified brake fluid. Never reuse the brake fluid that has been drained from the hydraulic system.
