Zephyr V6-3.0L VIN 1 (2006)
Vehicle Lifting: Description and Operation
JACKING
WARNING:
-
Do not run the engine when jacking the vehicle. The wheels contacting the ground could cause the vehicle to move. Failure to follow these
instructions may result in personal injury.
-
Make sure the jack and jack stands are correctly located to prevent the vehicle from falling. Failure to follow these instructions may
result in personal injury.
-
Wheel chocks should be used to prevent the vehicle from rolling and falling off the jack. Failure to follow these instructions may result in
personal injury.
CAUTION: The service jack provided with the vehicle is only intended to be used in an emergency for changing a deflated tire. Never use the
service jack to hoist the vehicle for any other service. Refer to the Owner Guide when using the jack supplied with the vehicle.

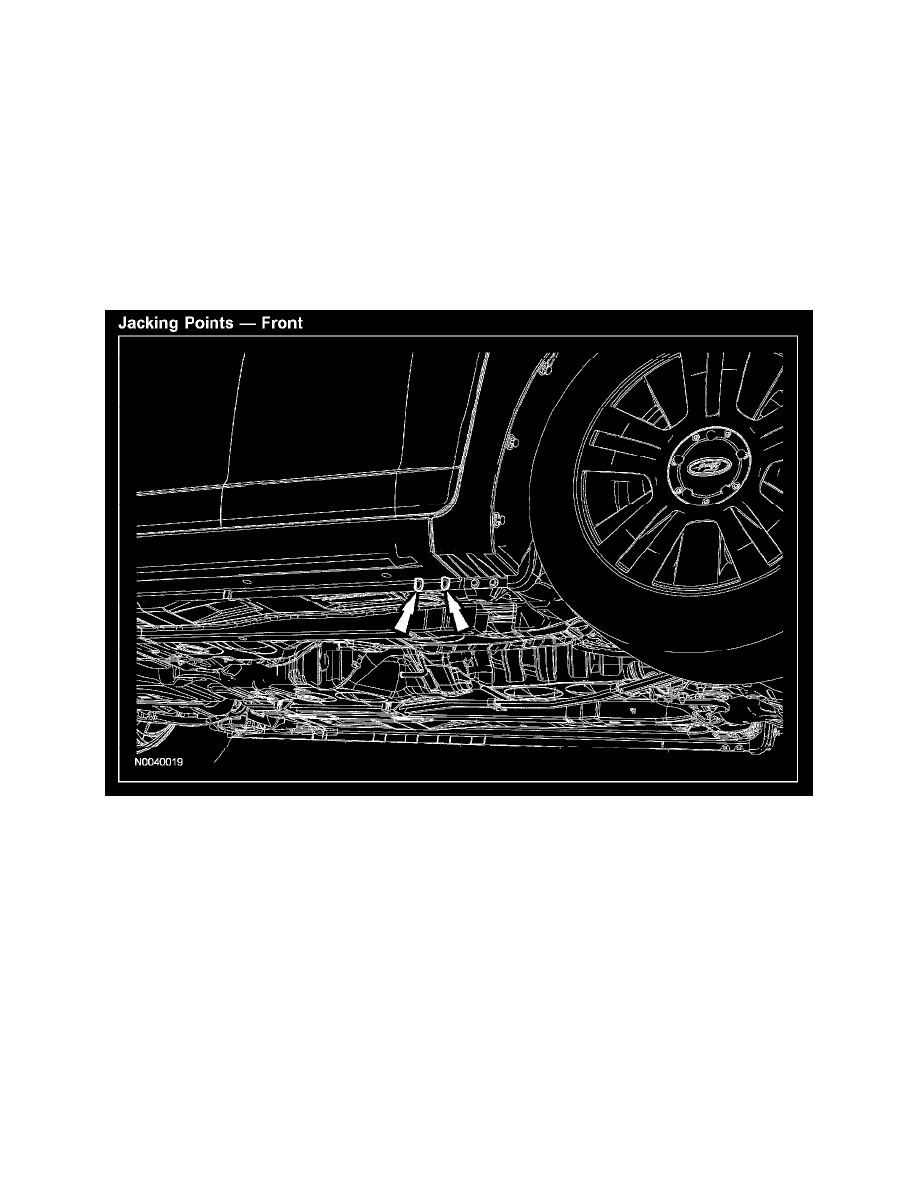

Jacking Points - Front
Jacking Points - Front
1. The front jacking points are identified by 2 indentations in the frame just behind the front wheels. Position the jack so its lift area fits between the
2 points.
Jacking Points - Rear
