3 L4-2.0L (2007)
Cowl Moulding / Trim: Service and Repair

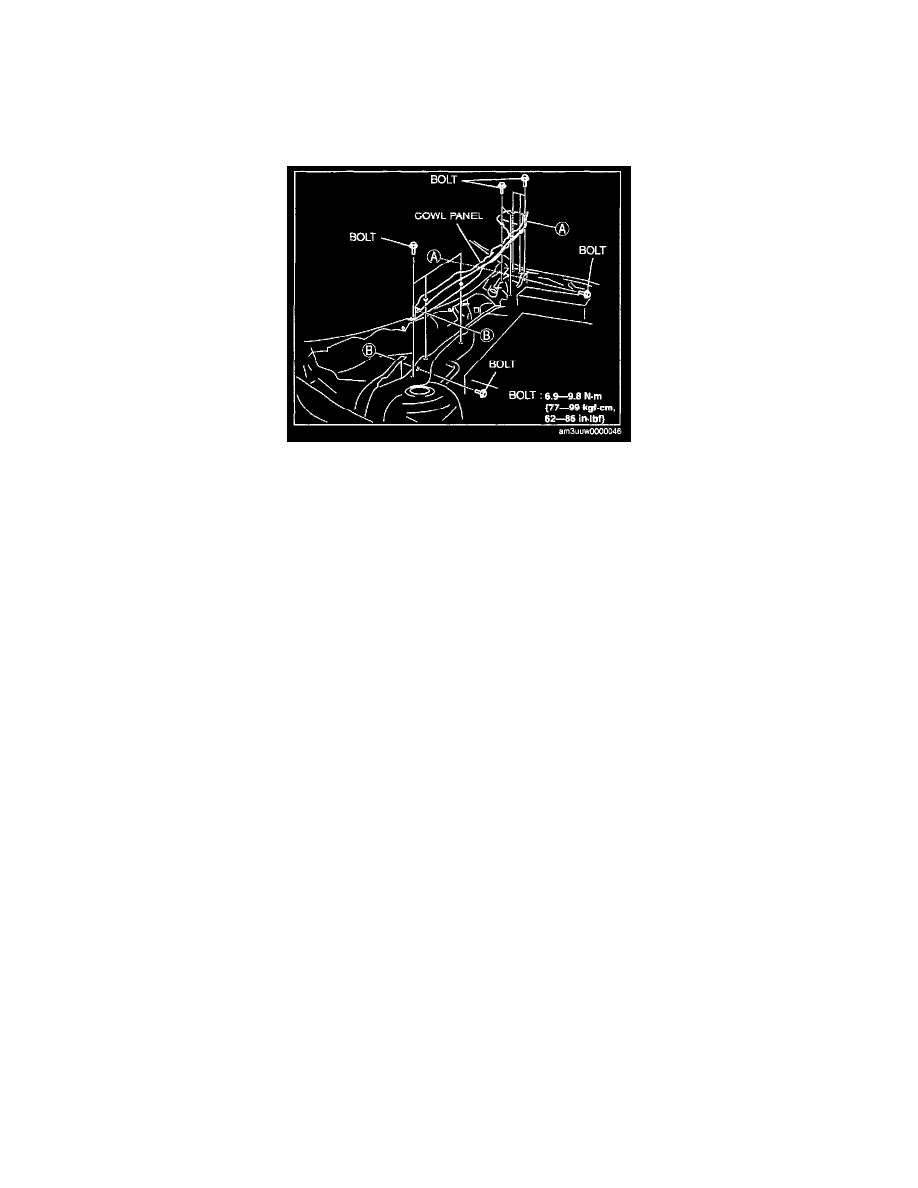

Cowl Panel Removal/Installation
COWL PANEL REMOVAL/INSTALLATION
1. Remove the windshield wiper arm and blade.
2. Remove the cowl grille.
3. Remove the bolts, then remove the cowl panel.
4. Install in the reverse order of removal.
