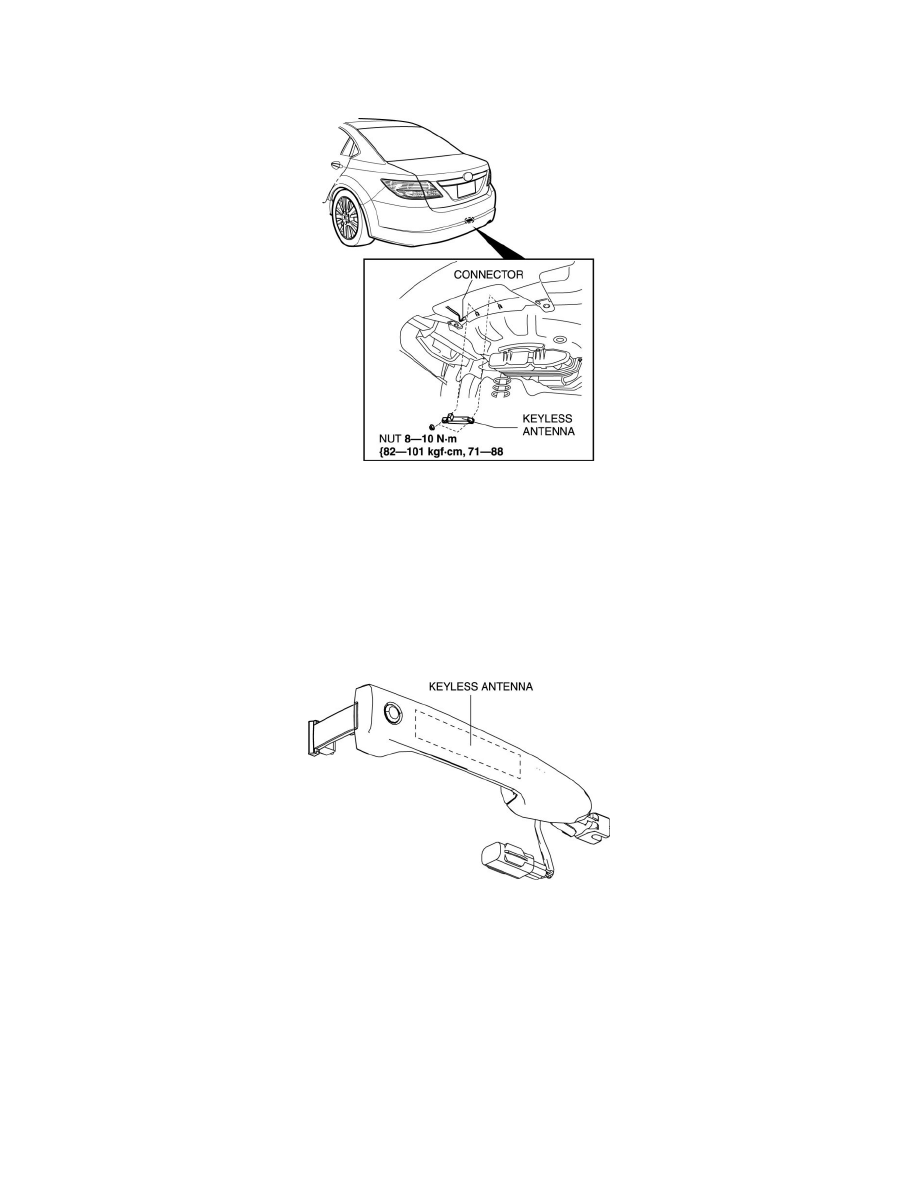

1. Disconnect the negative battery cable.

2. Remove the nuts.

3. Disconnect the connector.

4. Remove the keyless antenna.

5. Install in the reverse order of removal.

Vehicle Exterior, Driver's Door/Passenger's Door

NOTE:

-

The keyless antenna (vehicle exterior, driver's door/passenger's door) is built into the front outer handle.  See: Body and Frame/Doors, Hood and
Trunk/Doors/Front Door/Front Door Handle/Front Door Exterior Handle/Service and Repair
