6 L4-2.5L (2010)

Page 5
background image

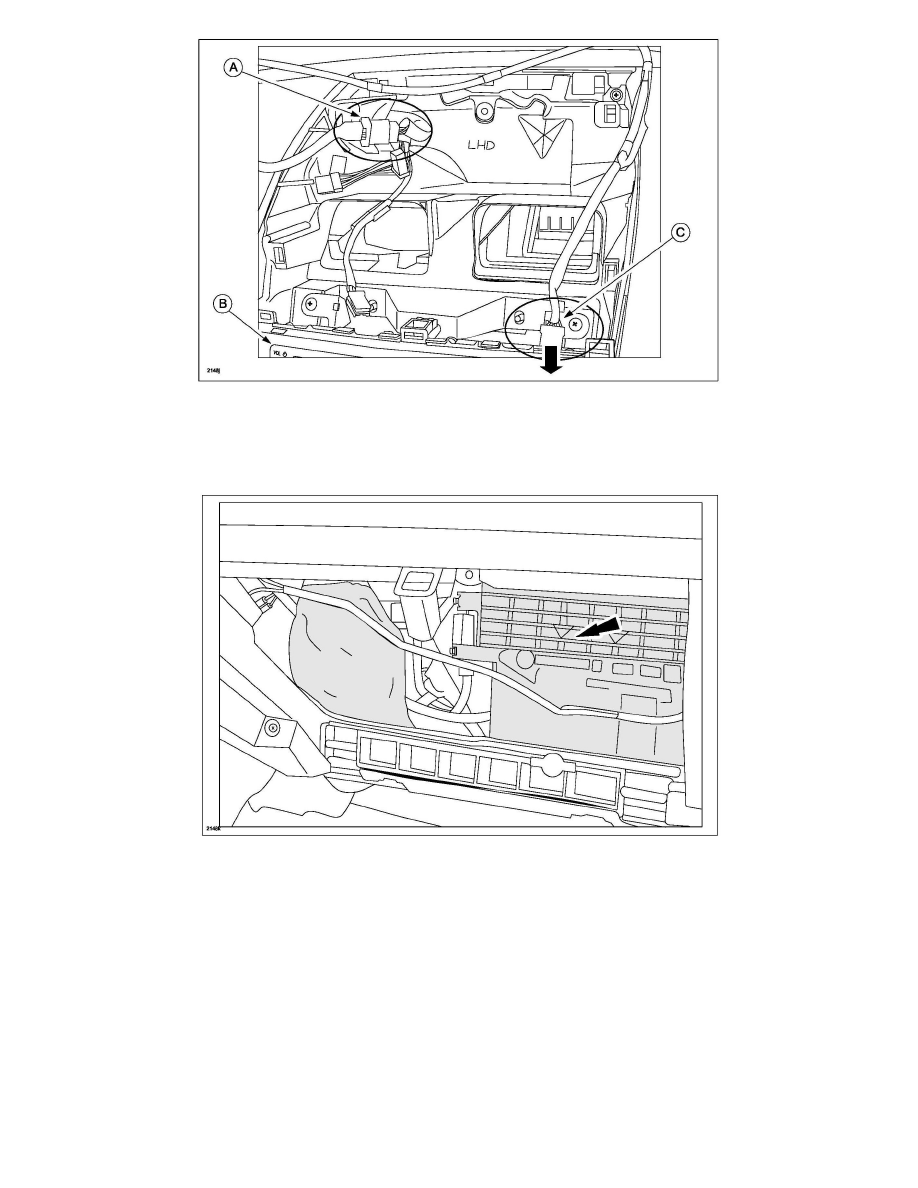

a. Disconnect microphone connector (A) from harness, then connect short cord to harness. Route short cord between audio (B) and instrumental

panel through opening (C).

b. Route short cord behind glove box.

NOTE:

Ensure the A/C filter cover can still be removed.
