6 L4-2.5L (2010)
Radio Tuner: Service and Repair

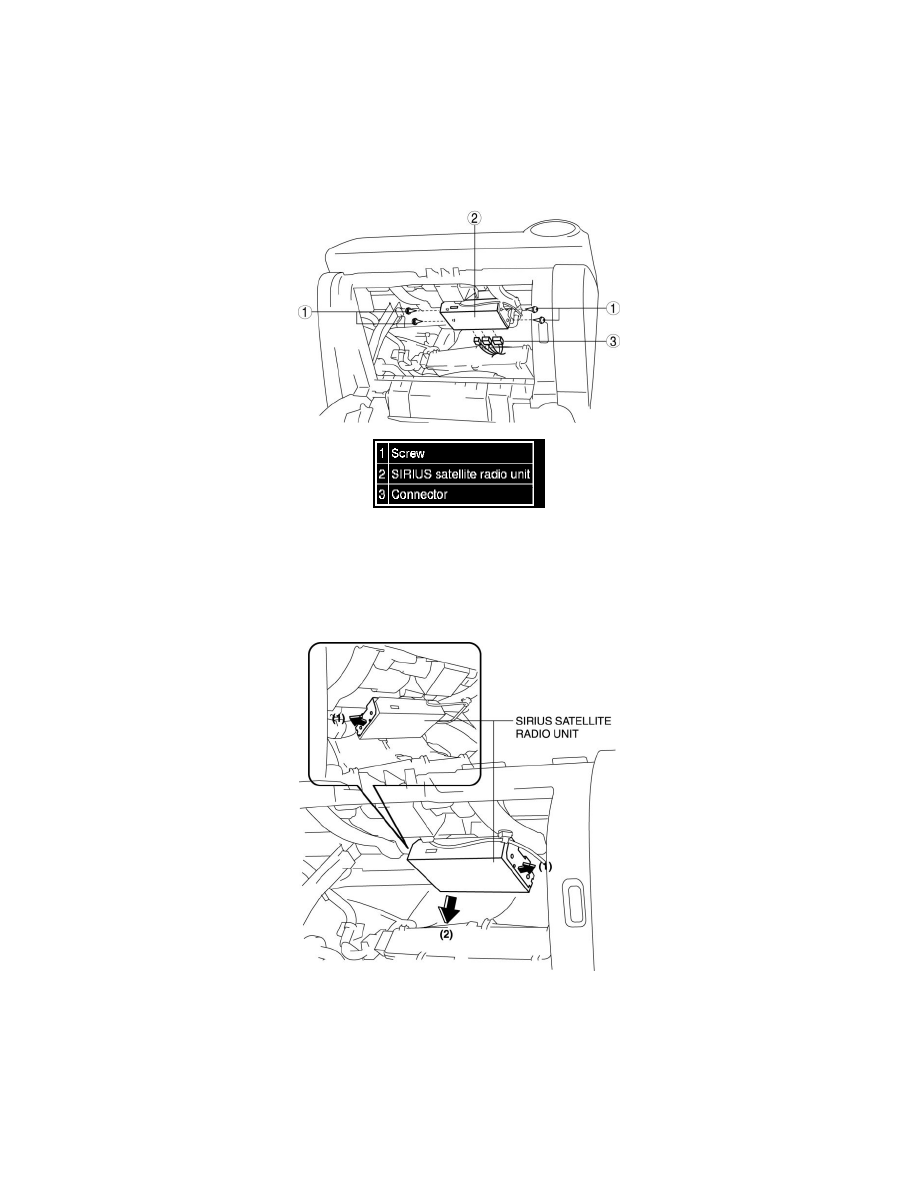

SIRIUS SATELLITE RADIO UNIT REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the glove compartment. See: Body and Frame/Interior Moulding / Trim/Glove Compartment/Service and Repair
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
SIRIUS Satellite Radio Unit Removal Note
1. Spread the SIRIUS satellite radio unit bracket apart in the direction of the arrow shown in the figure (1) to remove the SIRIUS satellite radio unit
(2).
