6 L4-2.5L (2010)
Front Bumper Reinforcement: Service and Repair
FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Front bumper See: Service and Repair/Removal and Replacement/Front Bumper Removal/Installation
b. Front combination light See: Lighting and Horns/Headlamp/Service and Repair
c. Aerodynamic under cover No.1 See: Splash Guard/Service and Repair/Aerodynamic Under Cover No.1 Removal/Installation
d. Front energy-absorbing form See: Service and Repair/Removal and Replacement/Energy-Absorbing Form Removal/Installation
e. Seal plate See: Service and Repair/Removal and Replacement/Seal Plate Removal/Installation
f.
Ambient temperature sensor See: Heating and Air Conditioning/Ambient Temperature Sensor / Switch HVAC/Service and Repair/Ambient
Temperature Sensor Removal/Installation - Full-Auto Air Conditioner See: Heating and Air Conditioning/Ambient Temperature Sensor /
Switch HVAC/Service and Repair/Ambient Temperature Sensor Removal/Installation - Manual Air Conditioner

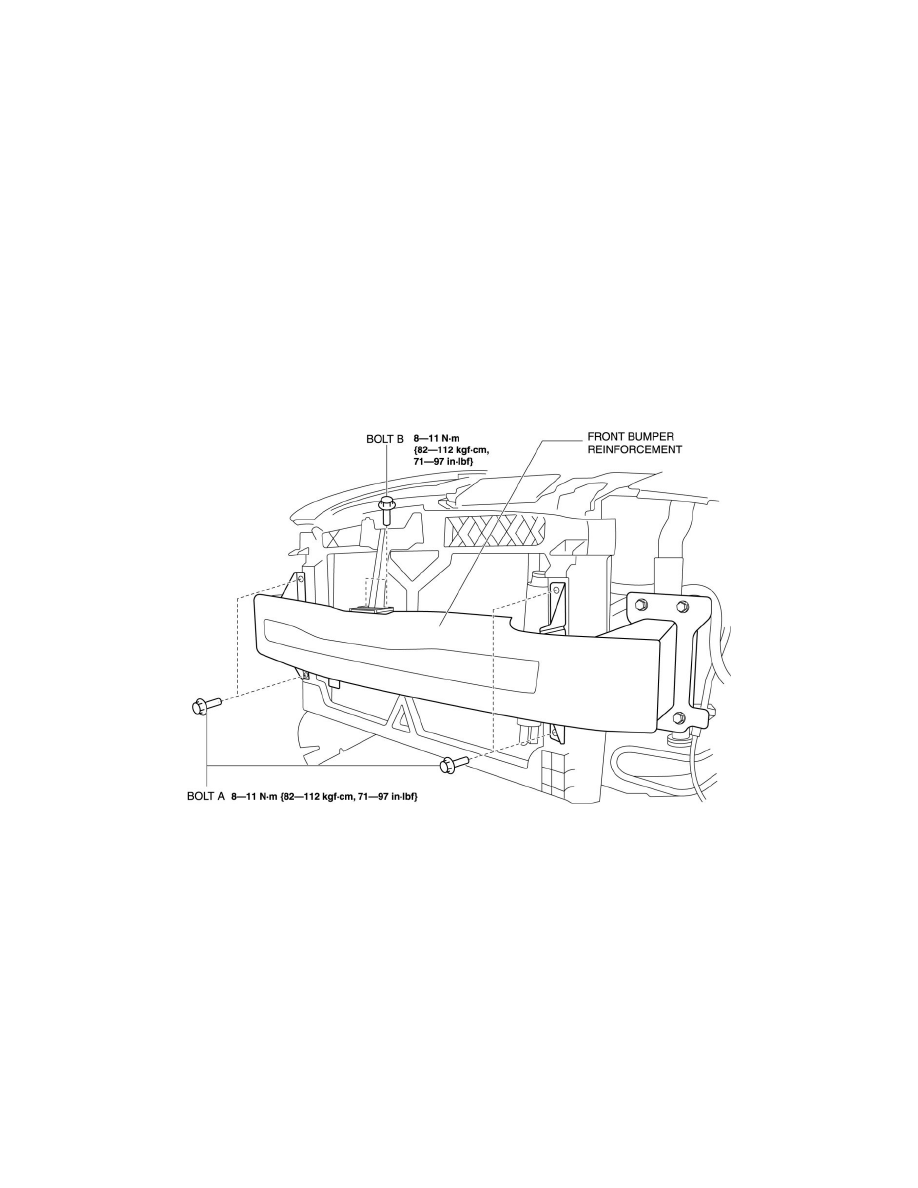

3. Remove the bolts A and bolts B.
4. Remove the nut C and bolt D.
