6 L4-2.5L (2010)
Cabin Ventilation Grille: Service and Repair

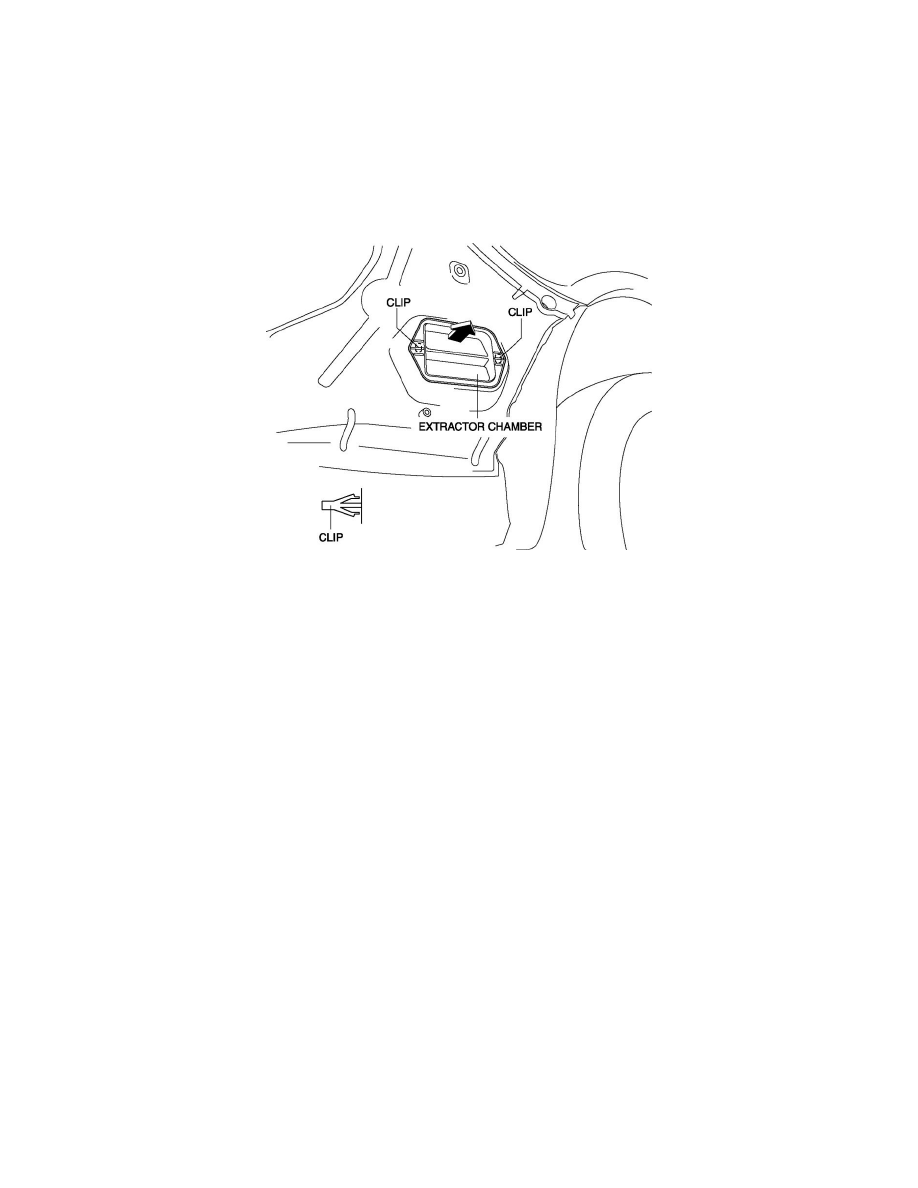

EXTRACTOR CHAMBER REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the rear combination light. See: Lighting and Horns/Tail Lamp/Service and Repair/Rear Combination Light Removal/Installation
3. Remove the rear bumper. See: Bumper/Rear Bumper/Service and Repair/Removal and Replacement
4. Remove the clip.
5. Remove the extractor chamber.
6. Install in the reverse order of removal.
