6 L4-2.5L (2010)
Front Door Hinge: Service and Repair
FRONT DOOR HINGE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Front bumper See: Bumper/Front Bumper/Service and Repair/Removal and Replacement/Front Bumper Removal/Installation
b. Front combination light See: Lighting and Horns/Headlamp/Service and Repair
c. Front fender molding See: Cowl/Cowl Moulding / Trim/Service and Repair/Cowl Grille Removal/Installation
d. Side step molding
e. Front fender panel See: Fender/Front Fender/Service and Repair
f.
Front door See: Service and Repair/Front Door Removal/Installation

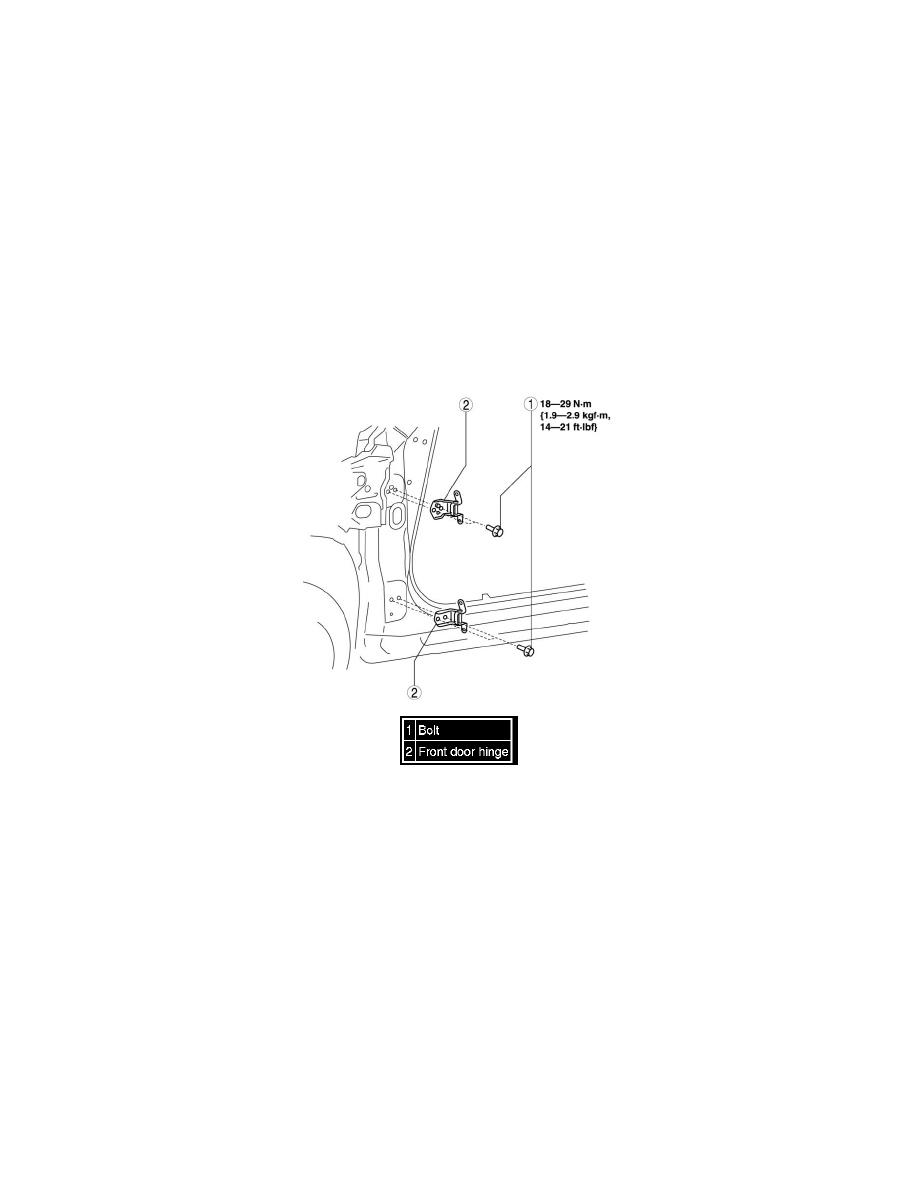

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
