Rear Door Exterior Handle: Service and Repair

REAR OUTER HANDLE REMOVAL/INSTALLATION

1. Fully close the rear door glass.

2. Disconnect the negative battery cable.

3. Remove the rear door trim.  See: Rear Door Panel/Service and Repair/Removal and Replacement

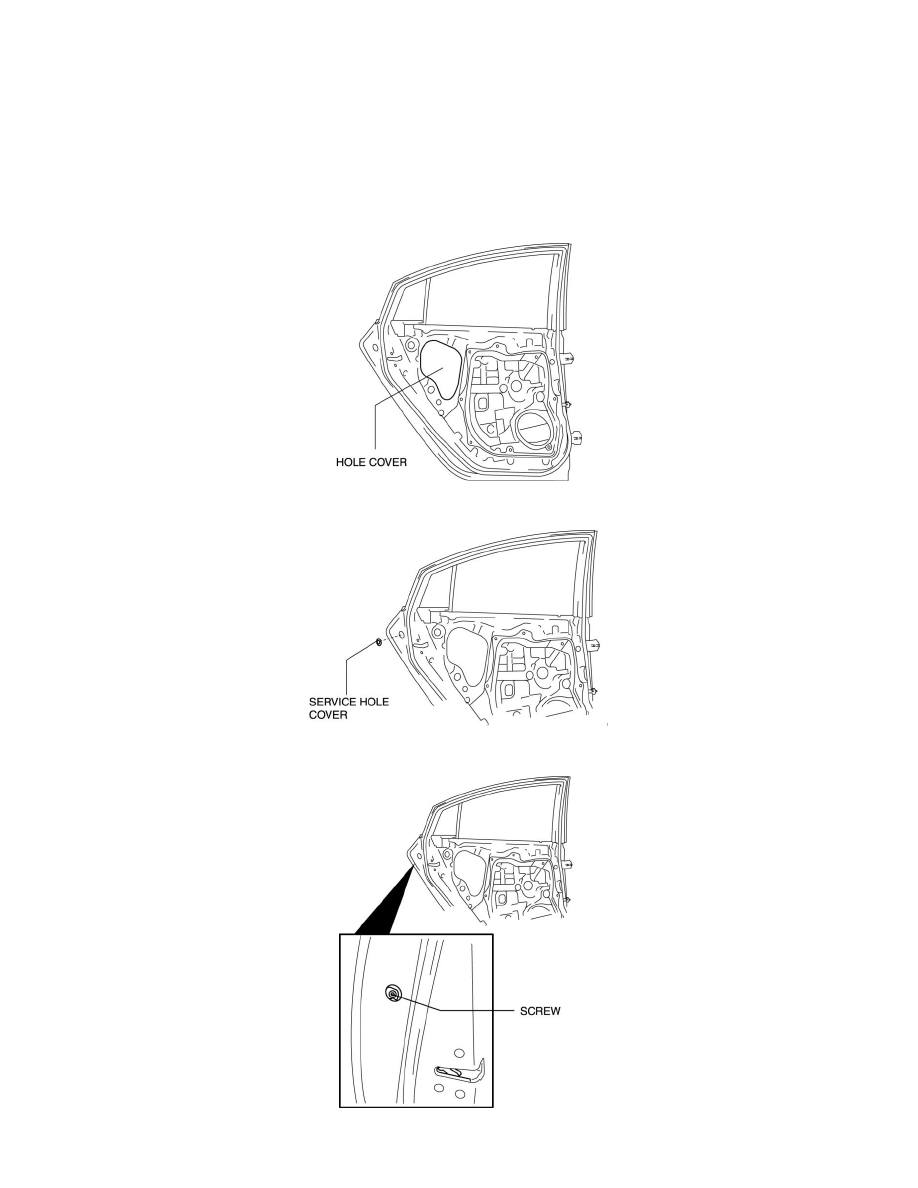

4. Remove the hole cover.

5. Remove the service hole cover.

6. Remove the screw from the service hole.

NOTE:
