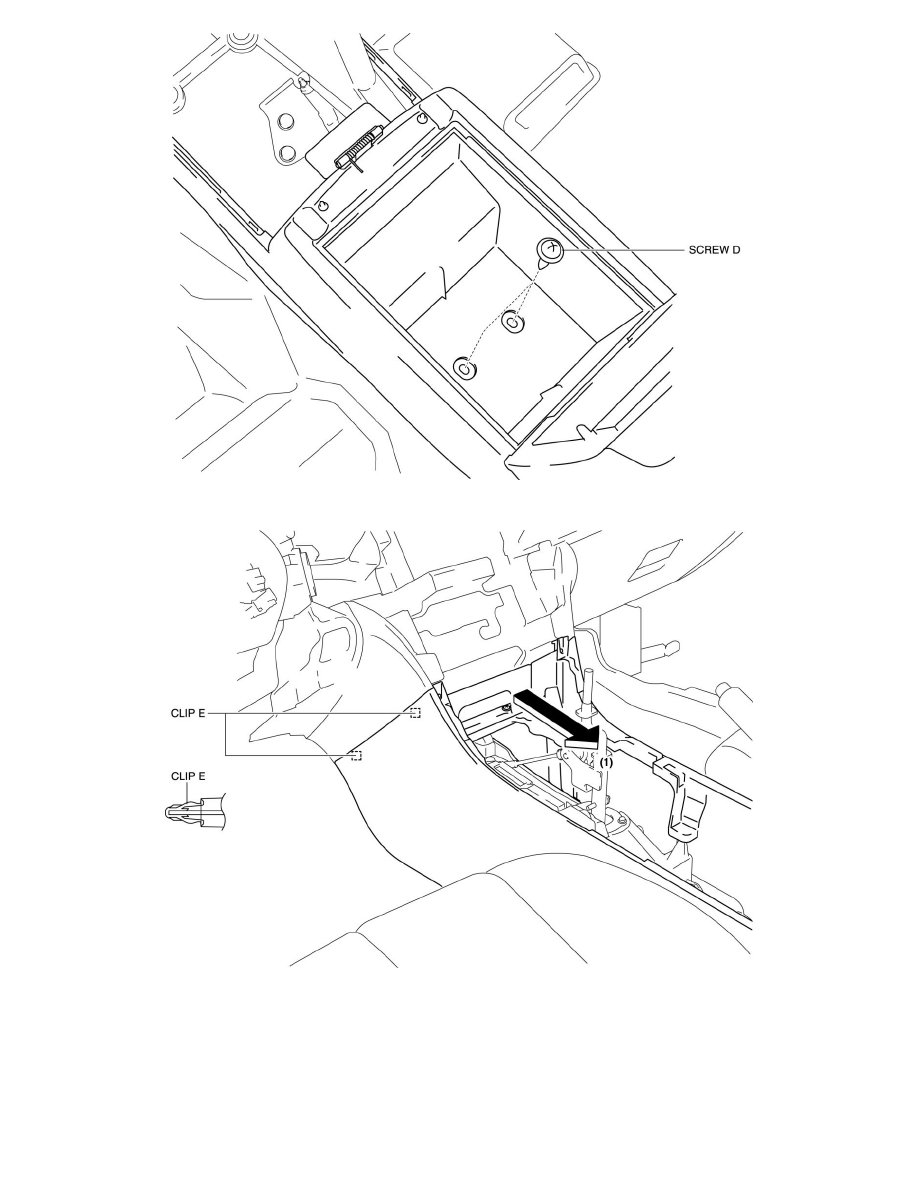

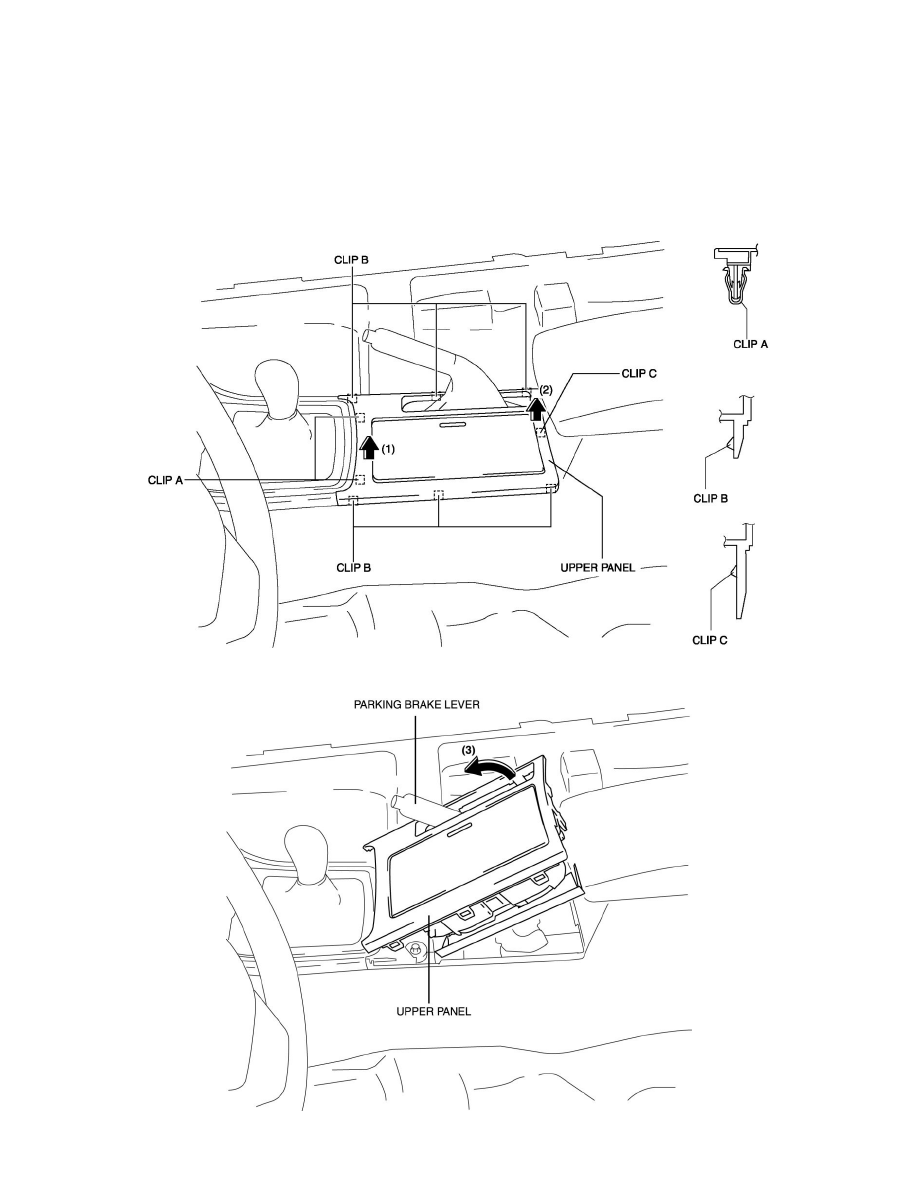

7. Pull the rear console in the direction of the arrow in the order of (1), then detaching clip E.

8. Pull up the rear console in the direction of the arrow (2) shown in the figure, move the rear console in the direction of the arrow (3), and remove it

avoiding the parking brake lever.
