Page 2
background image

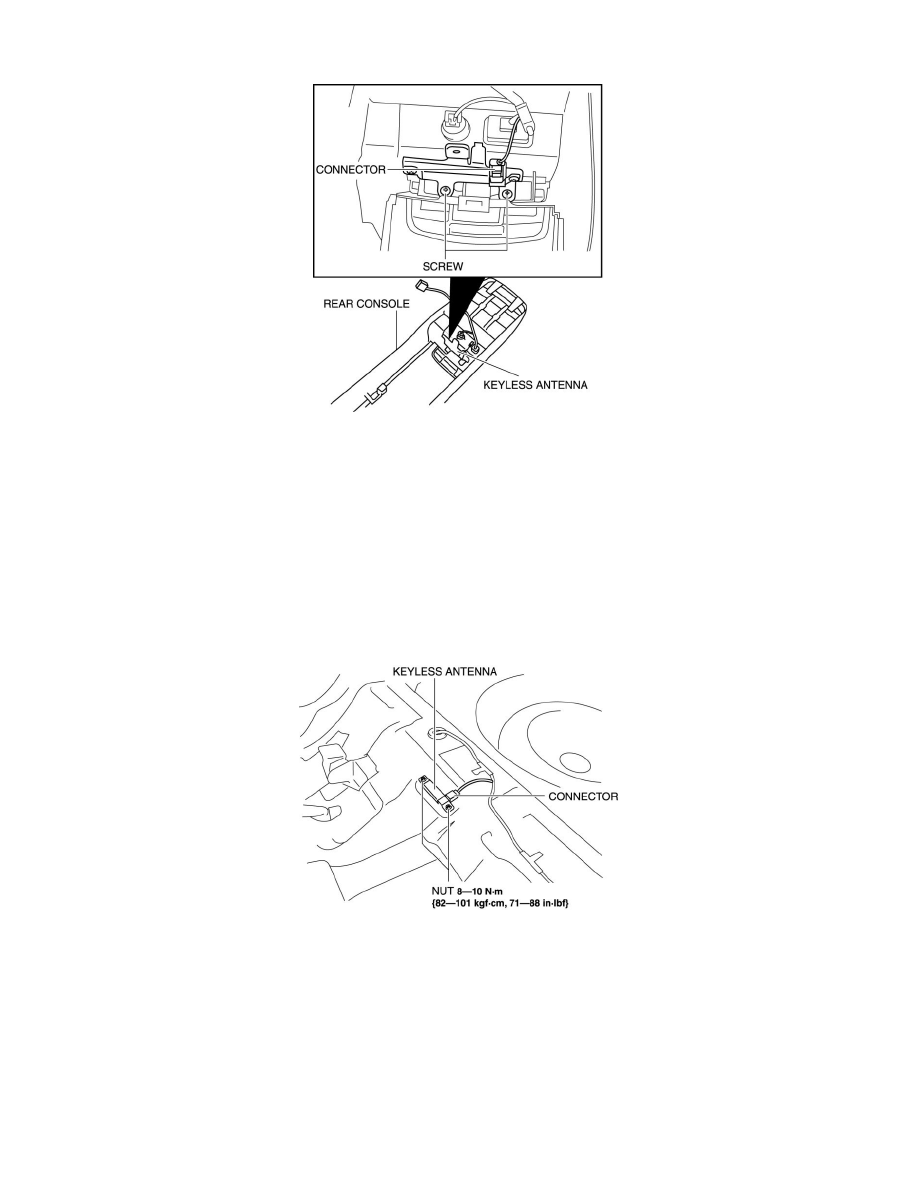

3. Disconnect the connector.

4. Remove the bolt.

5. Remove the keyless antenna.

6. Install in the reverse order of removal.

Vehicle Interior, Rear

1. Disconnect the negative battery cable.

2. Remove the rear seat cushion.  See: Seats/Seat Cushion/Service and Repair/Rear Seat Cushion Removal/Installation

3. Disconnect the connector.

4. Remove the nuts.

5. Remove the keyless antenna.

6. Install in the reverse order of removal.

Vehicle Exterior, Rear

1. Disconnect the negative battery cable.

2. Remove the nuts.
