6 L4-2.5L (2010)
Power Seat Motor: Testing and Inspection
Front Tilt Motor Inspection
FRONT TILT MOTOR INSPECTION
1. Disconnect the front tilt motor connector.

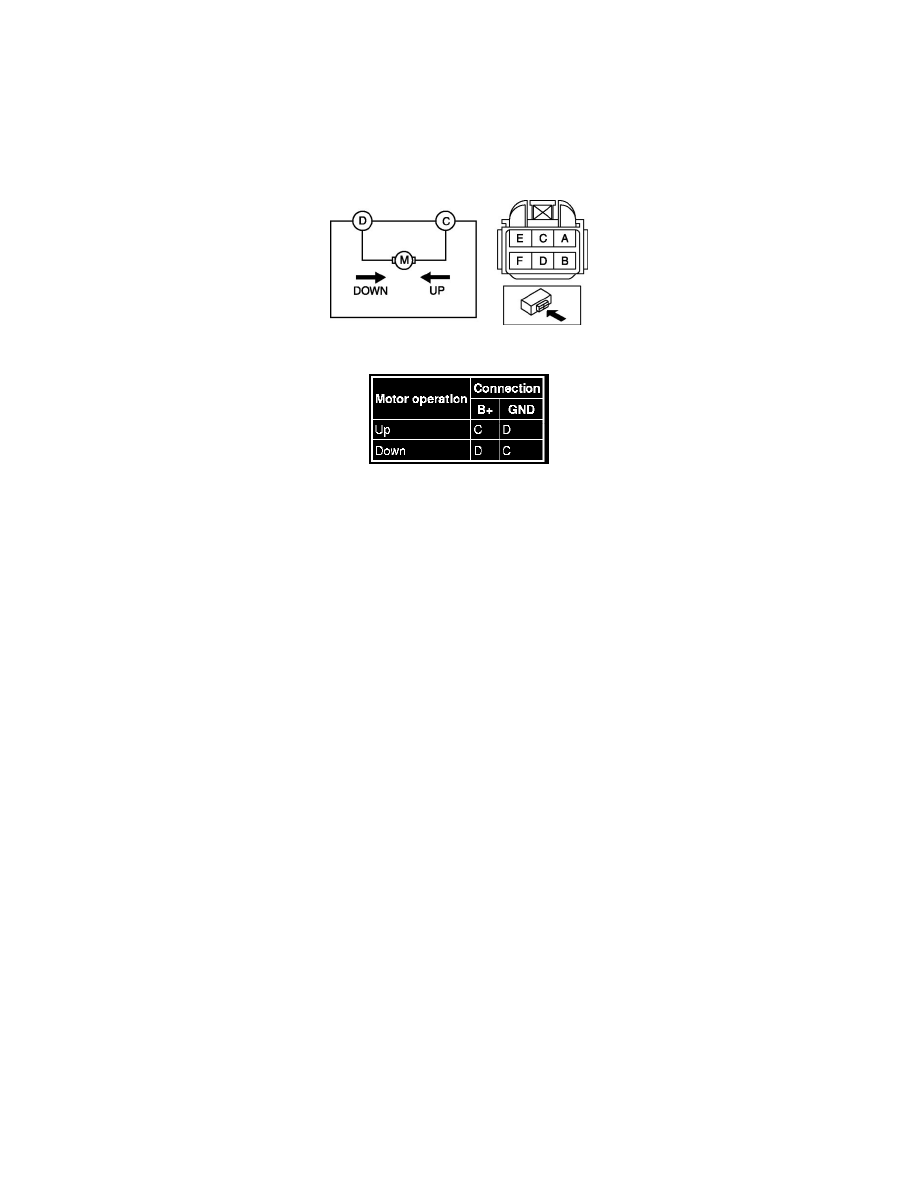

2. Apply battery positive voltage to the front tilt motor terminals and inspect the front tilt motor operation.
-
If not as specified, replace the front seat slide adjuster. See: Service and Repair/Overhaul/Front Seat Slide Adjuster Removal/Installation
