6 L4-2.5L (2010)
Seat Heater: Testing and Inspection

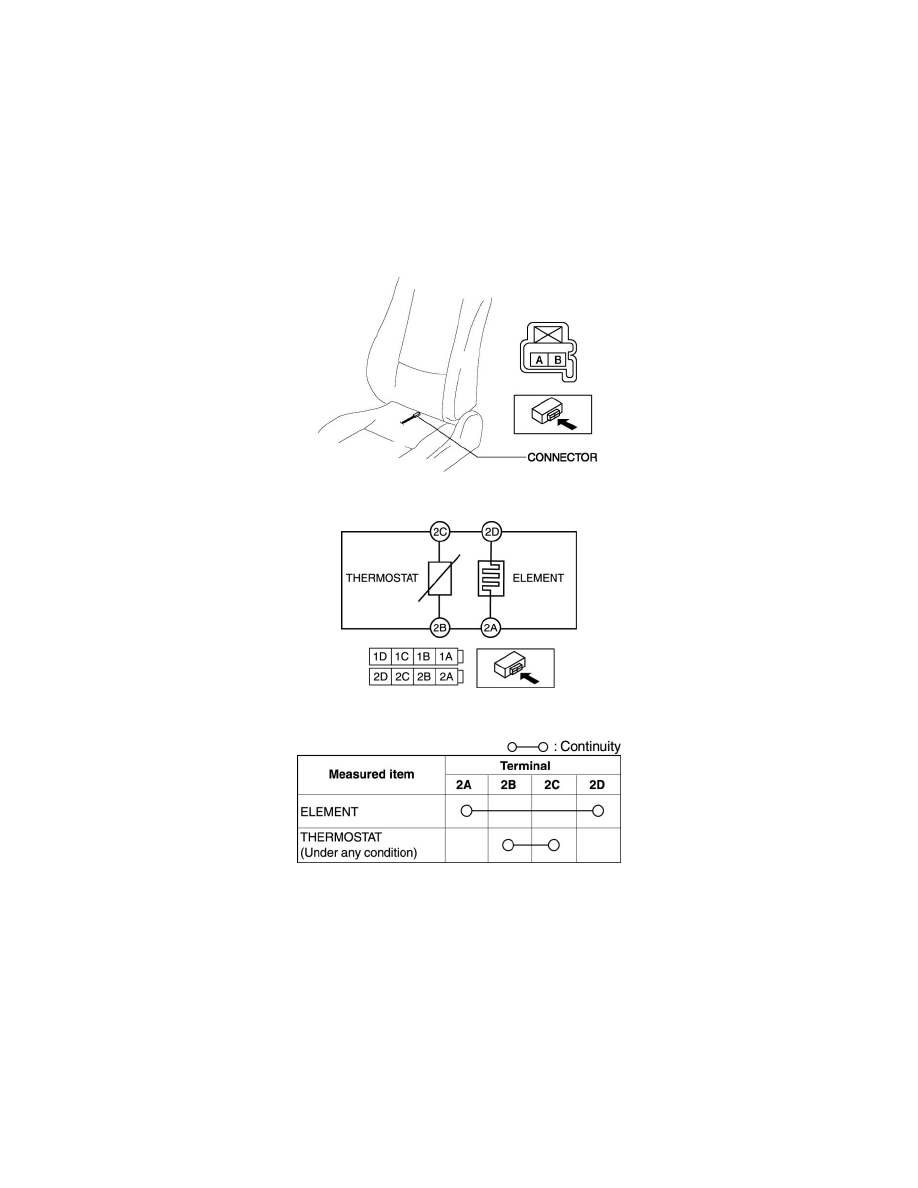

SEAT WARMER UNIT INSPECTION
Seat Cushion
1. Remove the front seat. See: Service and Repair/Removal and Replacement
2. Remove the front seat side cover. See: Service and Repair/Overhaul/Front Seat Side Cover Removal/Installation
3. Remove the front seat cushion trim. See: Service and Repair/Overhaul/Front Seat Cushion Trim Removal/Installation
4. Connect a jumper wire to the connector for the seat cushion warmer to seat back warmer.
5. Verify that the continuity between the hazard switch terminals is as indicated in the table.
-
If not as indicated in the table, replace the seat warmer unit. See: Service and Repair
Seat Back
1. Remove the front seat. See: Service and Repair/Removal and Replacement
2. Remove the front seat side cover. See: Service and Repair/Overhaul/Front Seat Side Cover Removal/Installation
3. Remove the front seat cushion trim. See: Service and Repair/Overhaul/Front Seat Cushion Trim Removal/Installation
4. Verify that the continuity between the seat warmer terminals is as indicated in the table.
