6 L4-2.5L (2010)

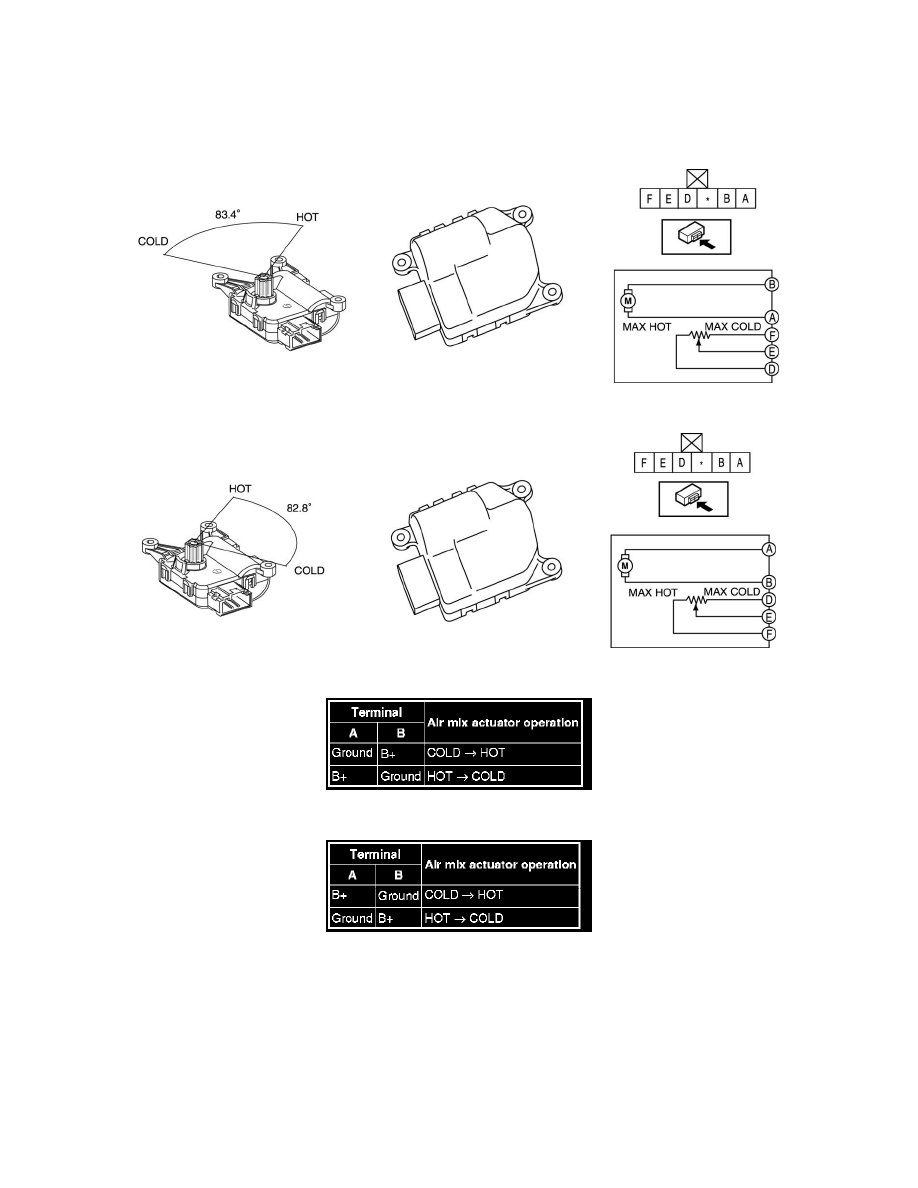

operation inspection with the door movement within the range shown in the figure.
1. Connect battery positive voltage to air mix actuator terminal A (or B), connect terminal B (or A) to ground, and then verify that the air mix
actuator operates as shown in the table.
-
If the operation condition is not normal, replace the air mix actuator.
Driver's side
Passenger's side
Driver's side
Passenger's side
2. Verify that the resistance between terminals D and E, and E and F matches the air mix actuator operation as shown in the graph.
-
If the operation condition and resistance are not normal, replace the air mix actuator.
Driver's side
