6 L4-2.5L (2010)
Blower Motor: Pinout Values and Diagnostic Parameters
FRONT POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO
AIR CONDITIONER]

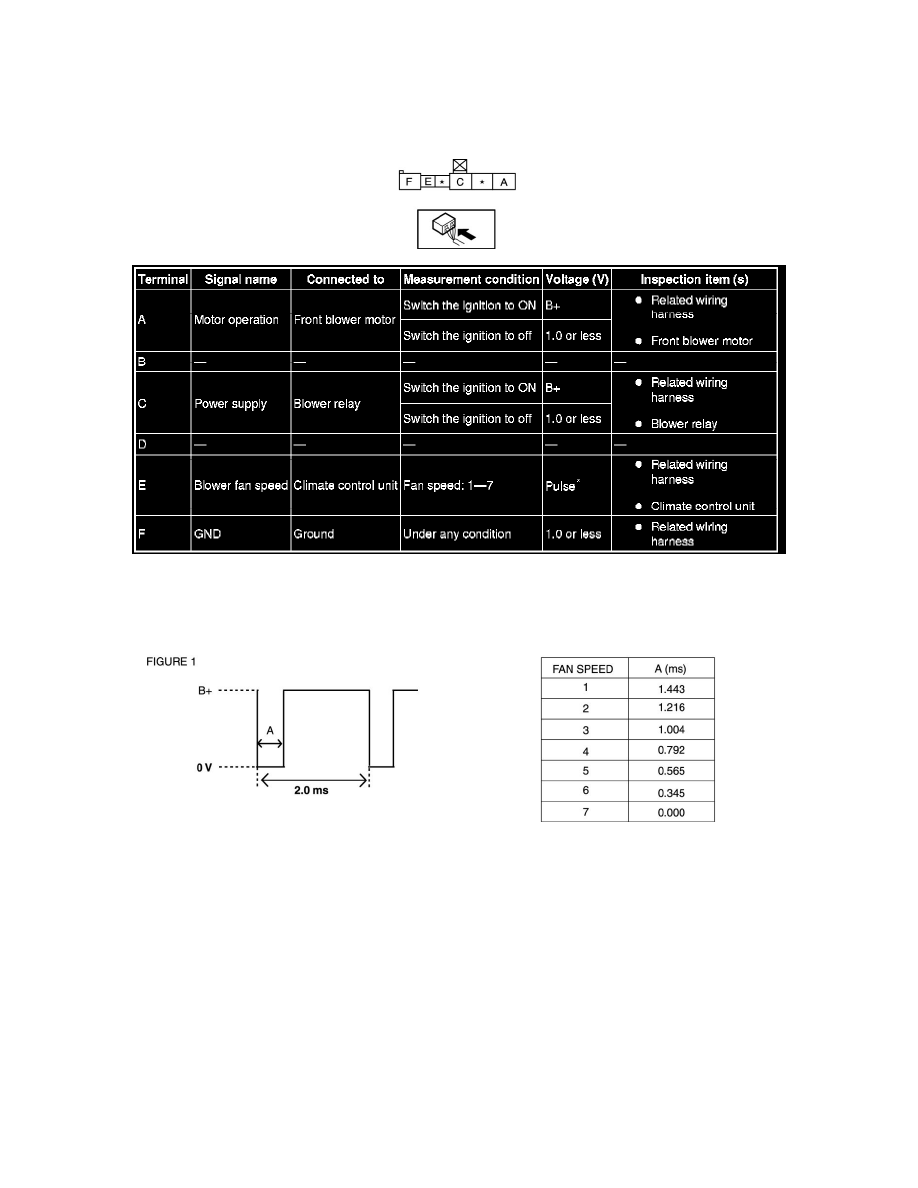

Terminal Voltage Table (Reference)
Terminal Voltage Table (Reference)
*
Refer to climate control unit terminal 1I (figure 1).
