6 L4-2.5L (2010)
Brake Light Bulb: Service and Repair
BRAKE/TAILLIGHT BULB REMOVAL/INSTALLATION
Bulb type
1. Disconnect the negative battery cable.
2. Remove the trunk end trim. See: Body and Frame/Interior Moulding / Trim/Scuff Plate/Service and Repair/Trunk End Trim Removal/Installation
3. Partially peel back the trunk side trim.

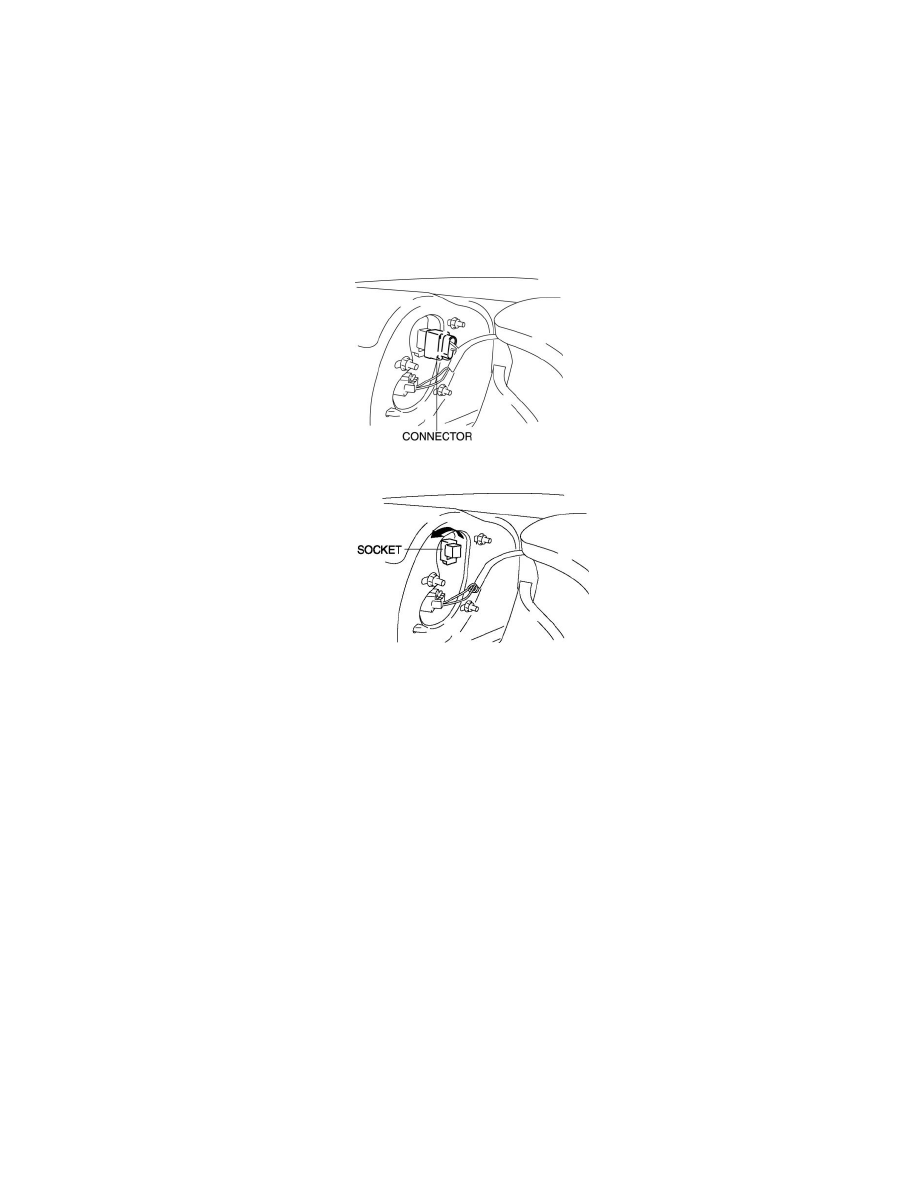

4. Disconnect the connectors shown in the figure.
5. Rotate the brake/taillight socket in the direction of the arrow shown in the figure and remove it.
6. Remove the brake/taillight bulb.
7. Install in the reverse order of removal.
