6 L4-2.5L (2010)
Map Light: Service and Repair

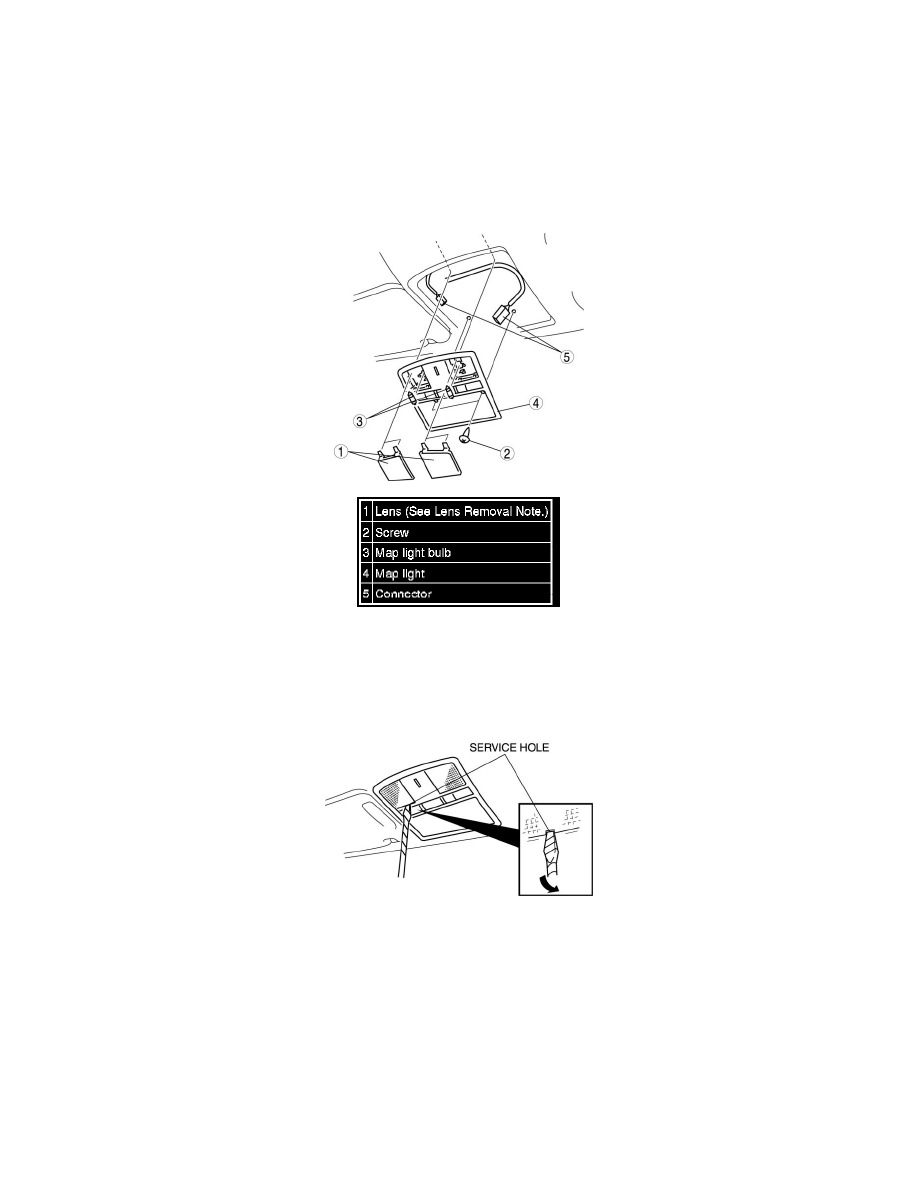

Map Light Removal/Installation
MAP LIGHT REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Open the overhead console.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
Lens Removal Note
1. Insert a tape-wrapped flathead screwdriver into the service hole and pry with the screwdriver in the direction shown by the arrow to remove the
lens.
