6 L4-2.5L (2010)
Marker Lamp Bulb: Service and Repair
Front Side Marker Light Removal/Installation

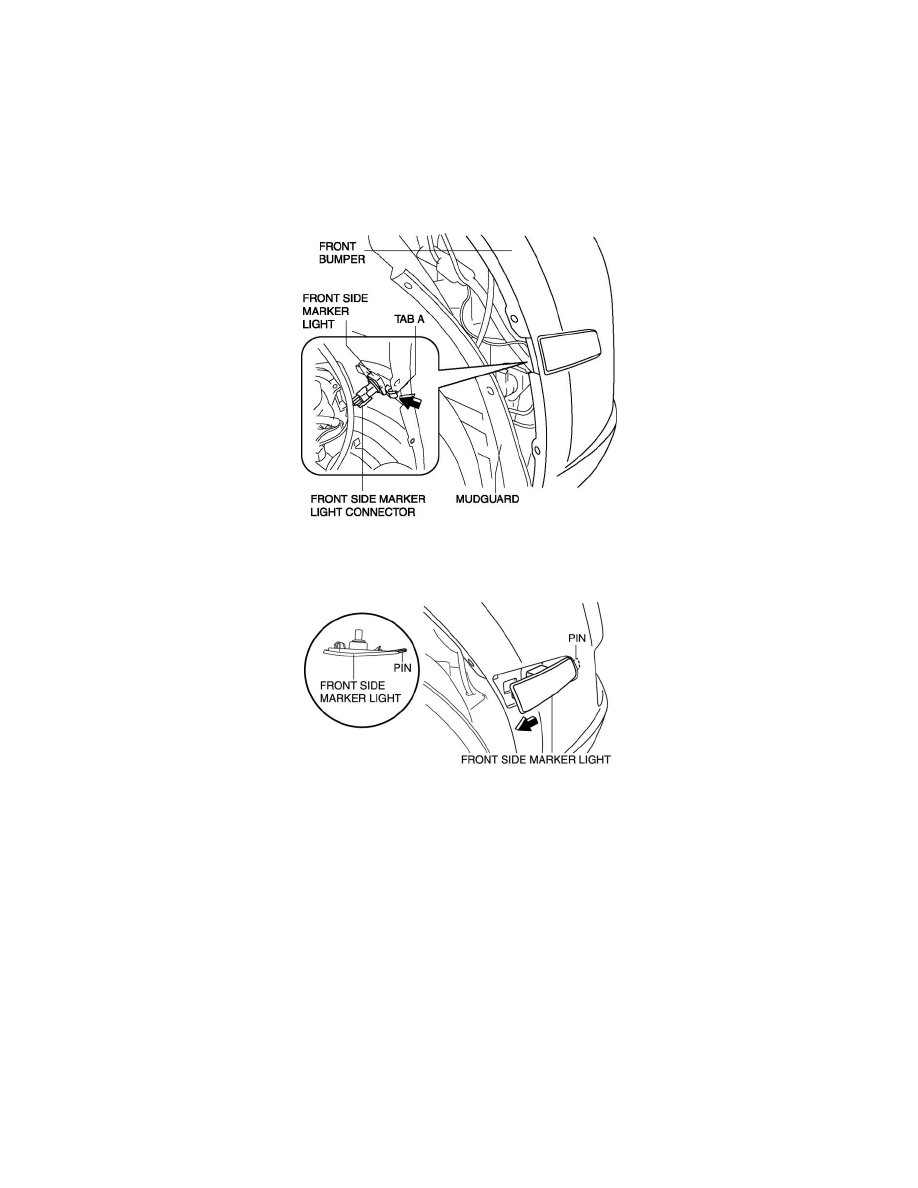

FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the fasteners, then slightly bend back the mudguard.
3. Disconnect the front side marker light connector.
4. Remove tab A by pressing it in the direction of the arrow shown in the figure.
5. Remove the front side marker light by pulling it in the direction of the arrow shown in the figure.
6. Install in the reverse order of removal.
