6 L4-2.5L (2010)
Refrigerant: Service and Repair
Refrigerant System General Procedures
REFRIGERANT SYSTEM GENERAL PROCEDURES

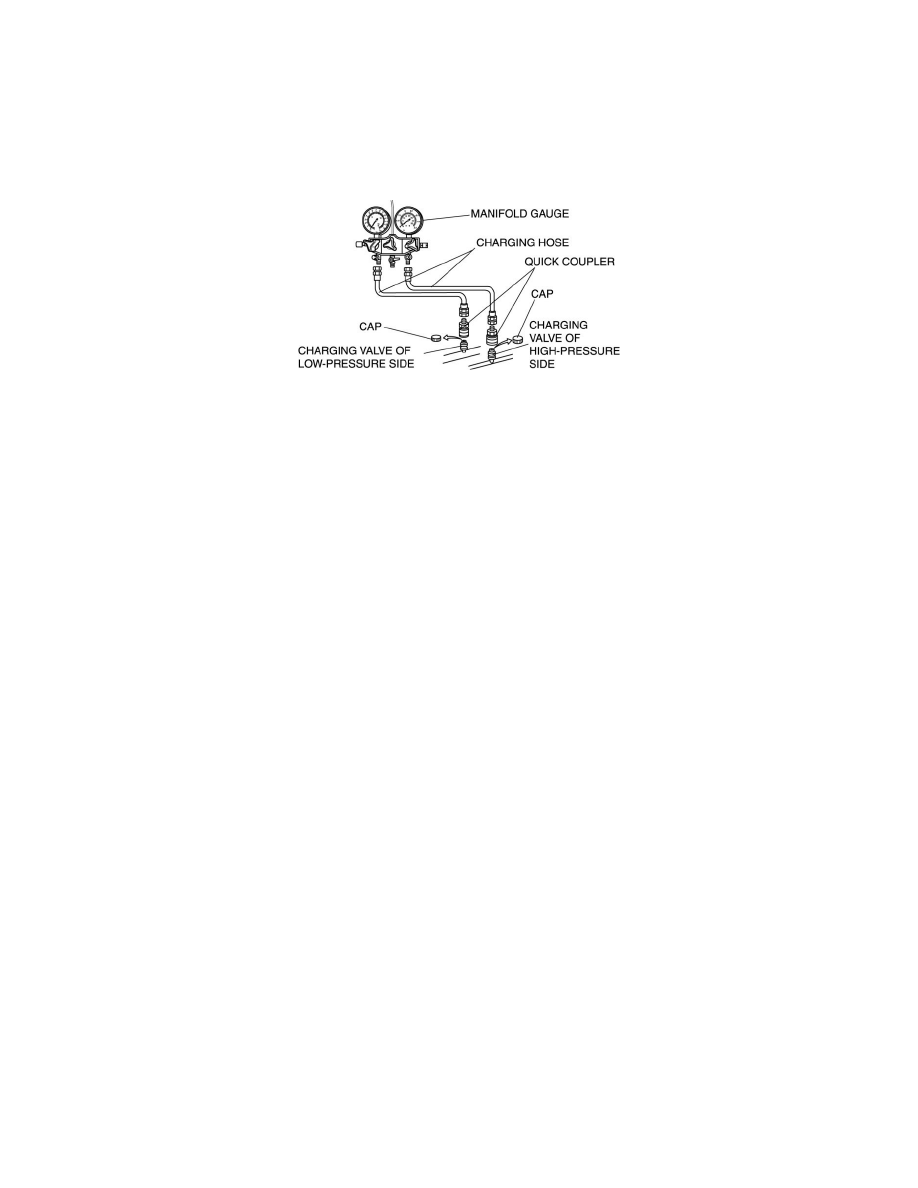

1. Fully close the valves of the manifold gauge.
2. Connect the charging hoses to the high- and low- pressure side joints of the manifold gauge.
3. Connect the quick couplers to the ends of the charging hoses.
4. Connect the quick couplers to the charging valves.
