6 L4-2.5L (2010)
Refrigerant Line Installation Note
1. Apply compressor oil to the O-rings and connect the joints.
2. Tighten the joints.
Block joint type
1. Tighten the bolt of joint by hand.

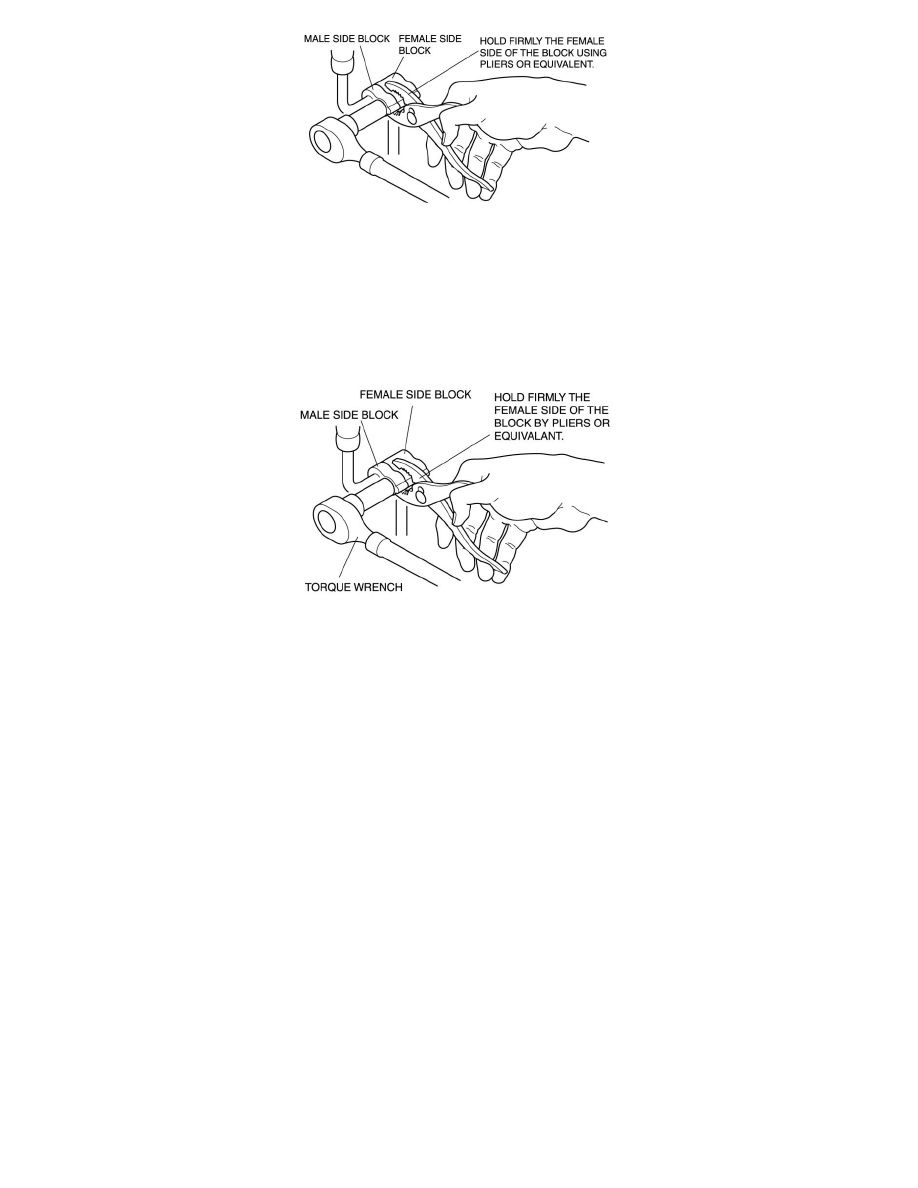

2. Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the
connection bolt with a torque wrench.
