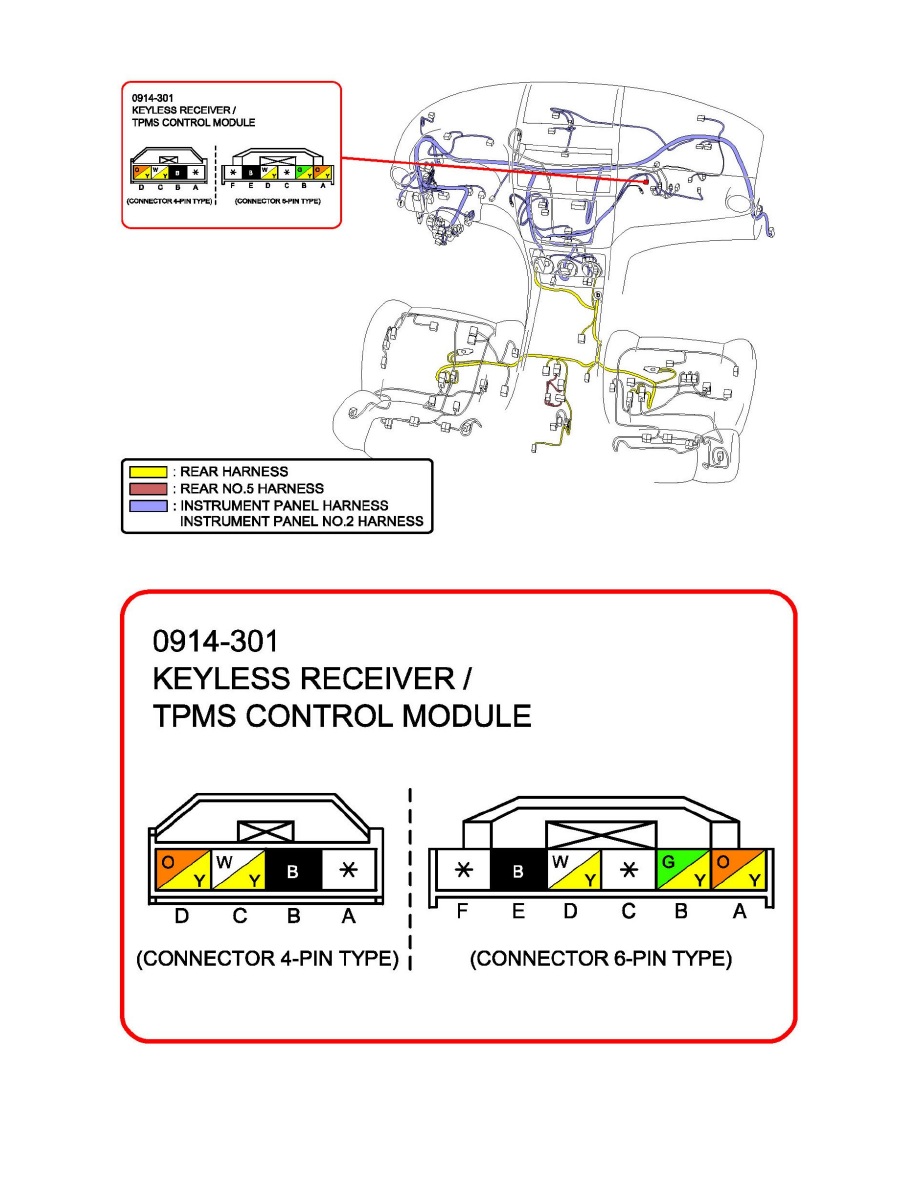

Tire Pressure Module: Locations

Keyless Receiver/TPMS Control Module

Maintenance
Wheels and Tires
Tire Monitoring System
Tire Pressure Module
Component Information
Locations
