6 L4-2.5L (2010)
Wheel Fastener: Service and Repair
Rear Wheel Hub Bolt Replacement
REAR WHEEL HUB BOLT REPLACEMENT
1. Remove the brake caliper component and disc plate. See: Wheel Hub/Service and Repair/Removal and Replacement/Rear Wheel Hub Component
Removal/Installation

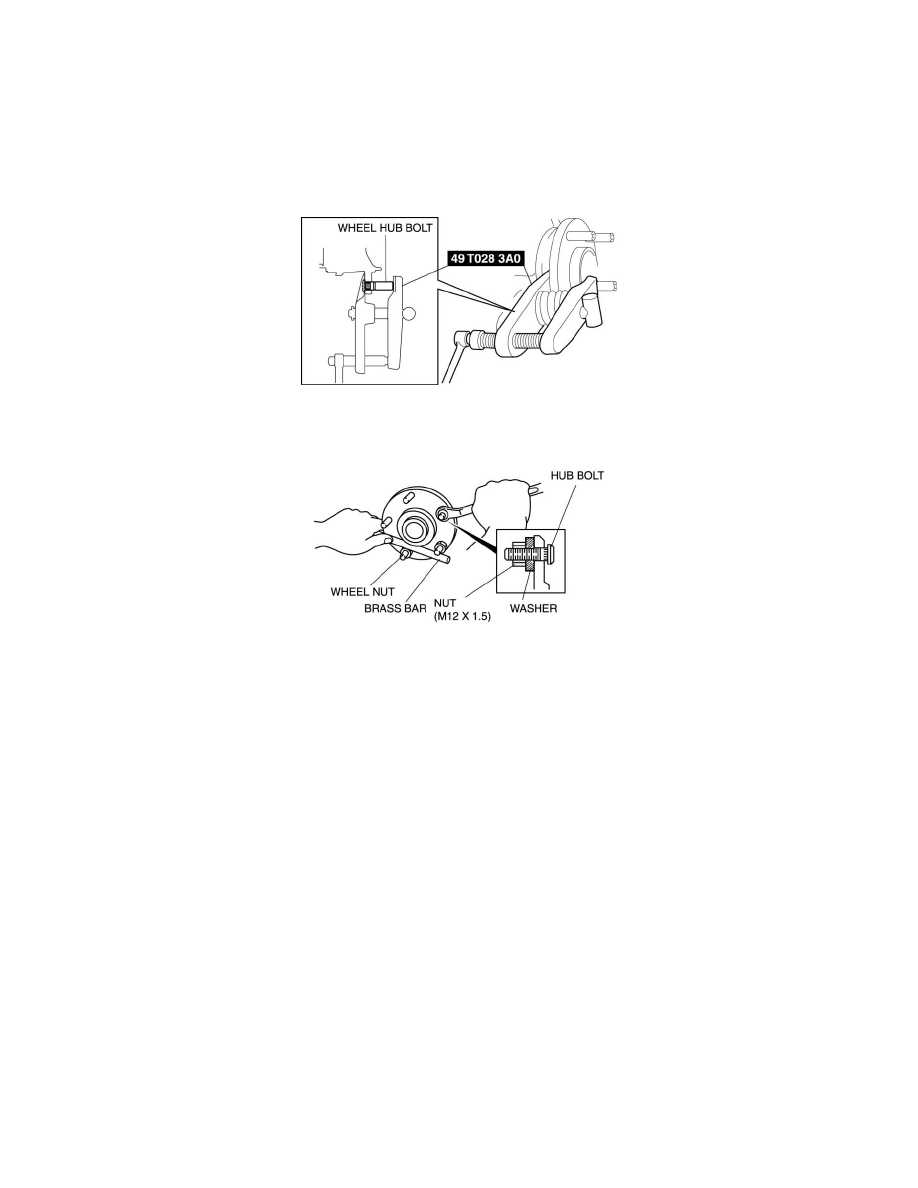

2. Remove the wheel hub bolt using the SST as shown in the figure.
3. Place a new wheel hub bolt in the wheel hub.
4. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.
