Page 1

background image

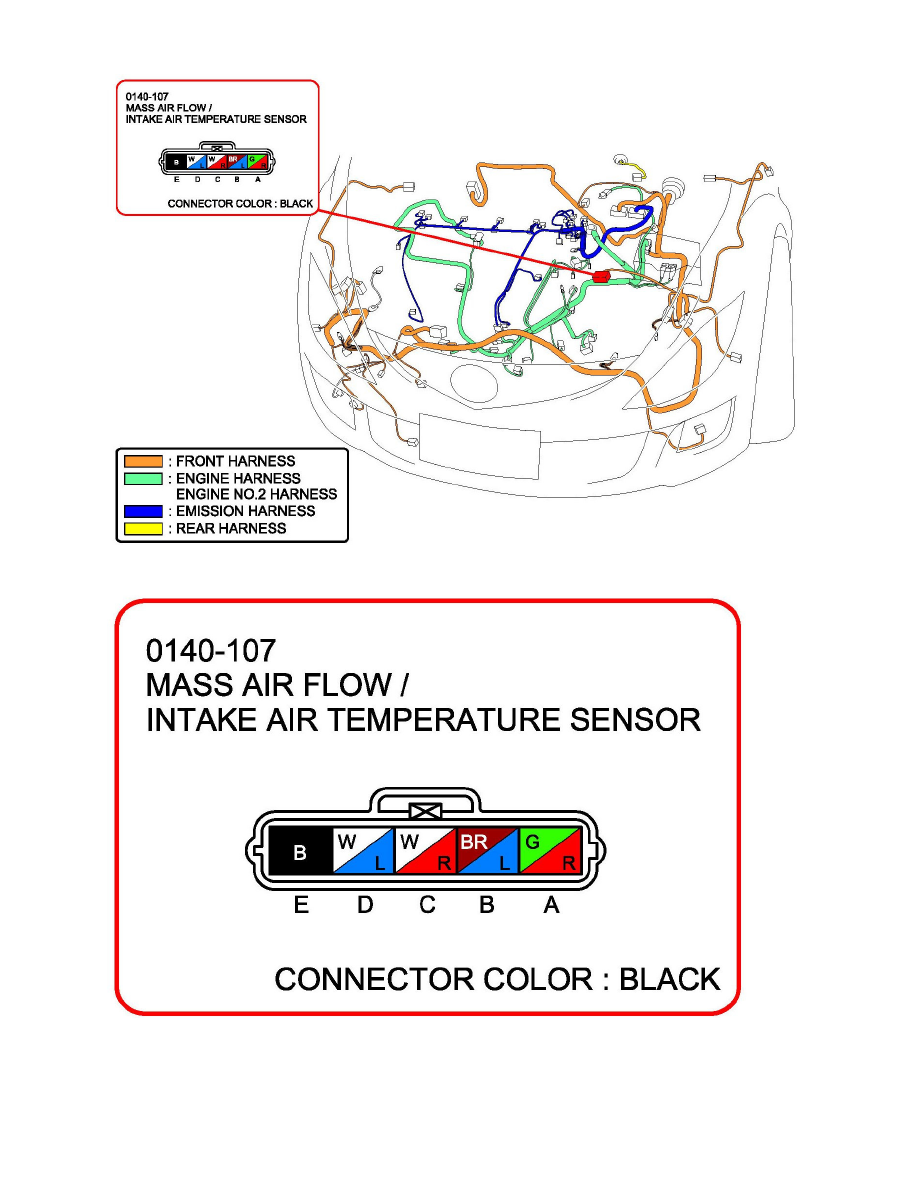

Intake Air Temperature Sensor: Connector Locations

Mass Air Flow/Intake Air Temperature Sensor

Powertrain Management
Computers and Control Systems
Intake Air Temperature Sensor / Component Information
Locations / Component Locations
Page 2498
