6 L4-2.5L (2010)
Powertrain Management
Computers and Control Systems
Relays and Modules - Computers and Control Systems / Body Control Module / Component Information
Testing and Inspection / Component Tests and General Diagnostics
Page 2827
Page 2

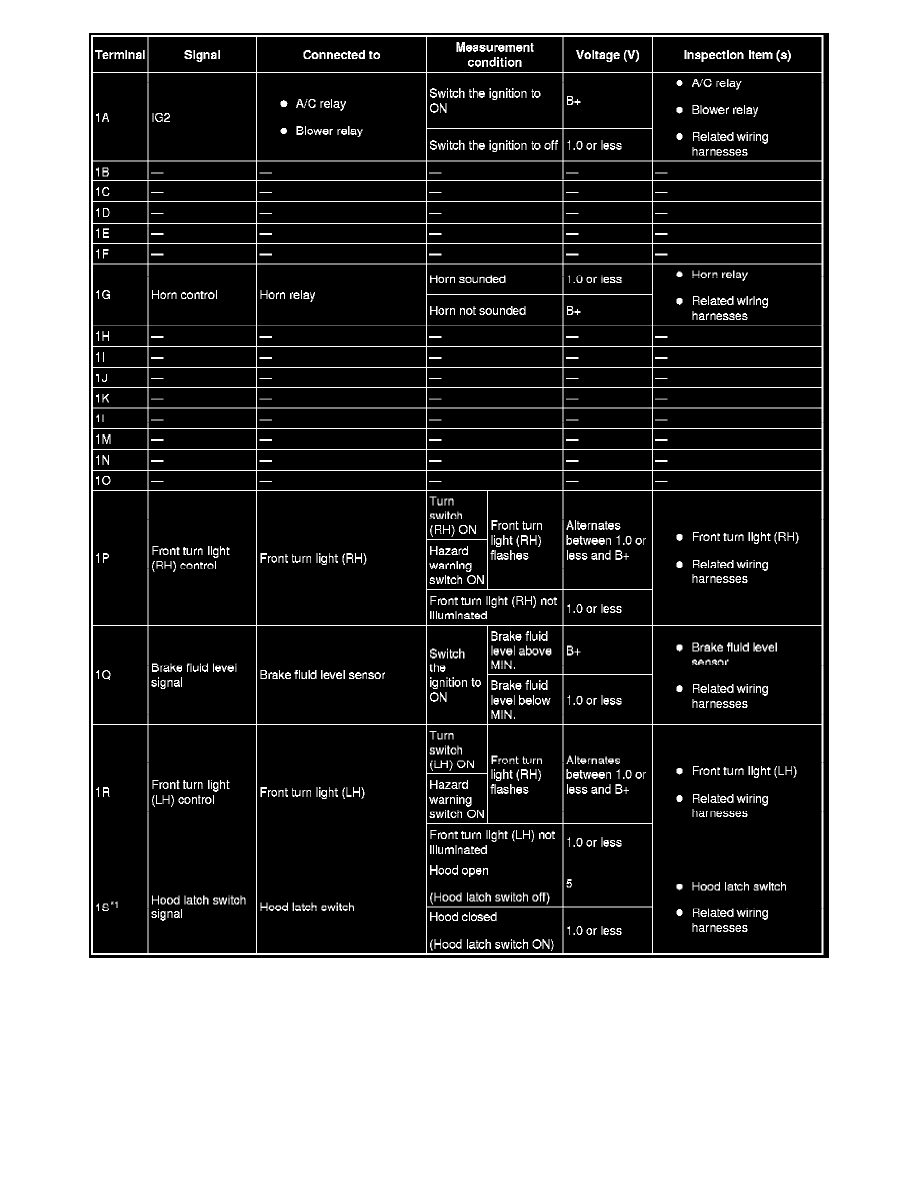

Terminal Voltage Table (Reference) (Part 1)
Powertrain Management
Computers and Control Systems
Relays and Modules - Computers and Control Systems / Body Control Module / Component Information
Testing and Inspection / Component Tests and General Diagnostics
Page 2827
