6 L4-2.5L (2010)
Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems / Body Control Module / Component Information
Testing and Inspection / Component Tests and General Diagnostics
Page 2102
Page 6

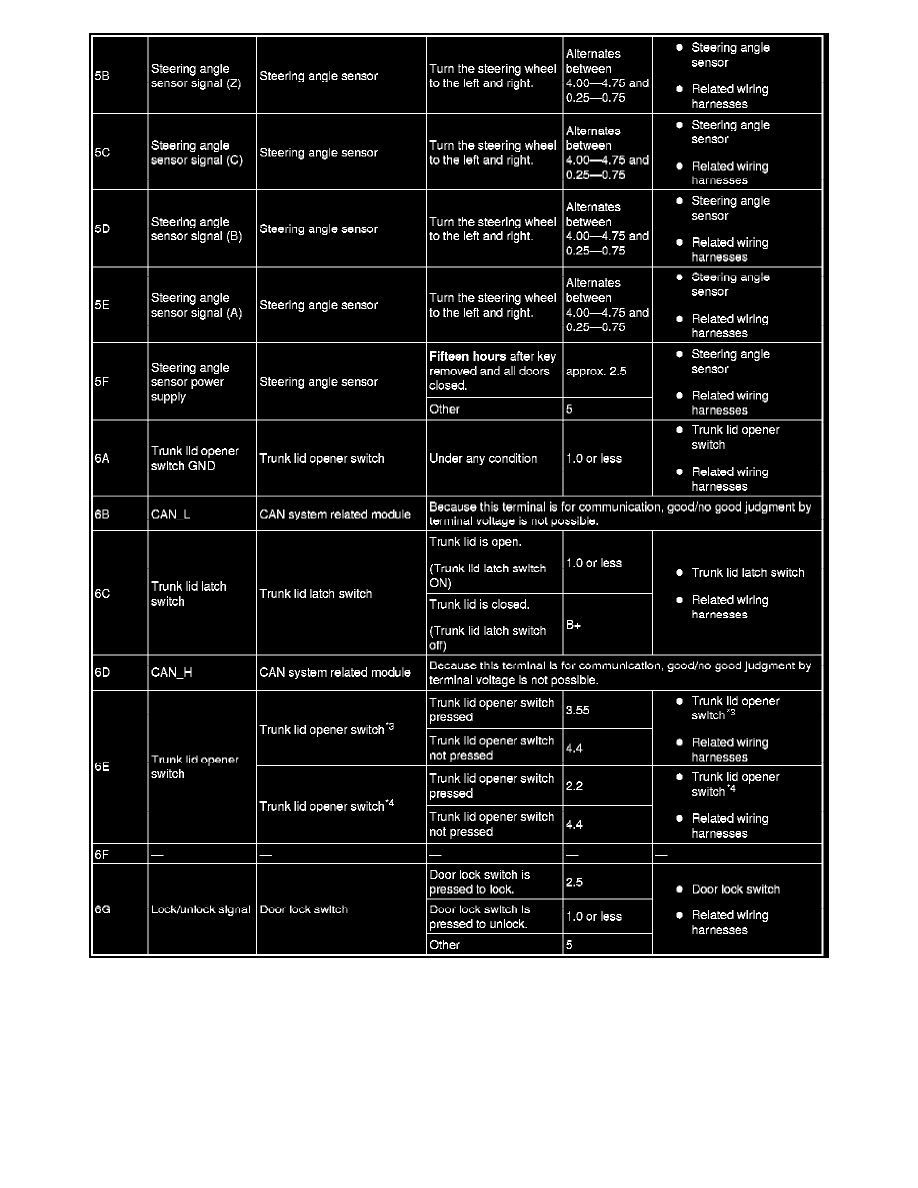

Terminal Voltage Table (Reference) (Part 5)
Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems / Body Control Module / Component Information
Testing and Inspection / Component Tests and General Diagnostics
Page 2102
