Page 7

background image

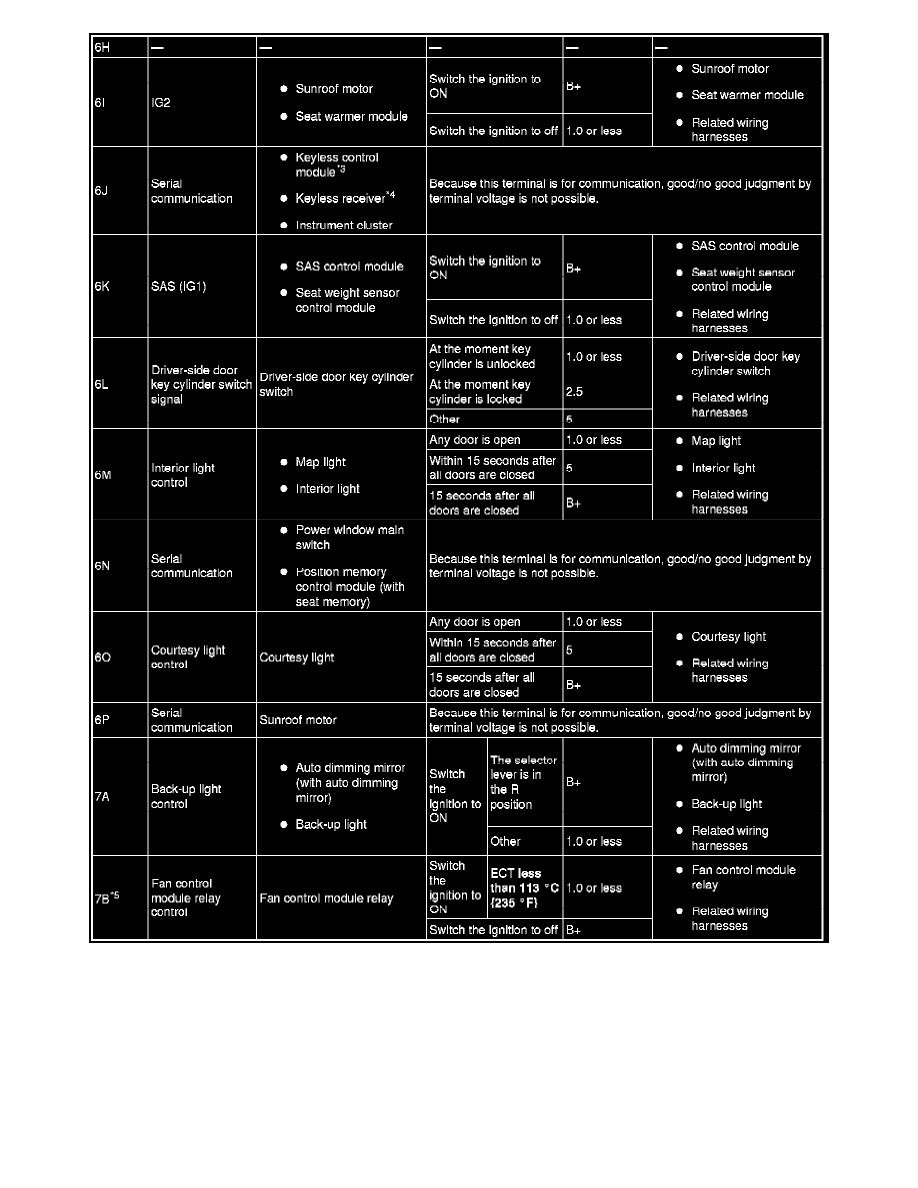

Terminal Voltage Table (Reference) (Part 6)

Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems / Body Control Module / Component Information
Testing and Inspection / Component Tests and General Diagnostics
Page 2114
