6 L4-2.5L (2010)
Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems
Engine Control Module / Component Information
Testing and Inspection / Component Tests and General Diagnostics
Page 2206
Page 9

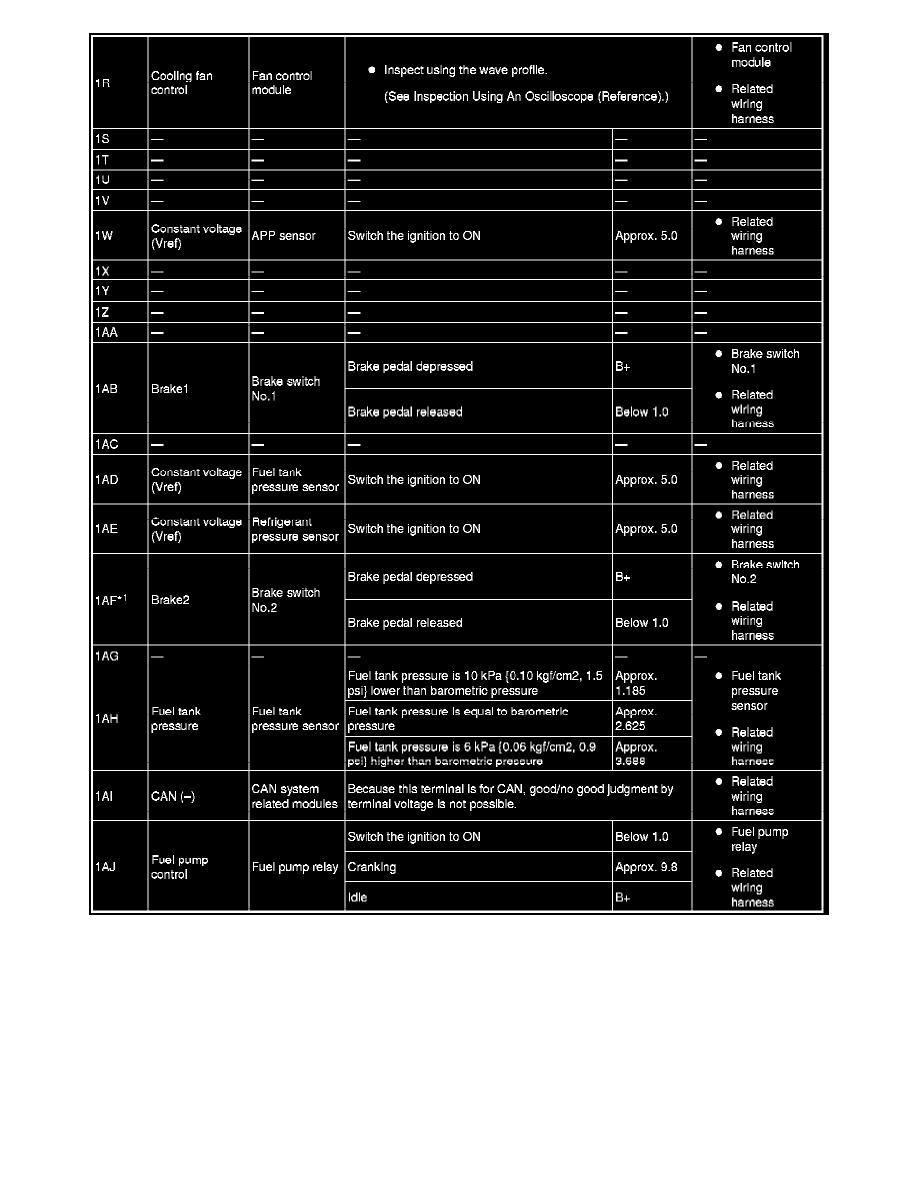

Terminal Voltage Table (Reference) Part 2
Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems
Engine Control Module / Component Information
Testing and Inspection / Component Tests and General Diagnostics
Page 2206
