6 L4-2.5L (2010)
Transmission Speed Sensor: Service and Repair
Input/Turbine Speed Sensor Removal/Installation - AW6A-EL
INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [AW6A-EL]
WARNING:
-
A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until then are cool.
-
Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eyeglasses whenever using
compressed air
CAUTION:
-
If foreign materials are stuck to the sensor, disturbance by magnetic flux can cause sensor output to be abnormal and thereby negatively affect
control. Make sure that foreign materials such as iron filings are not stuck to the sensor during installation.
-
Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the
connector when disconnecting it.
1. Remove the control valve body.
a. Disconnect the negative battery cable.
b. Remove the air cleaner component. See: Engine, Cooling and Exhaust/Engine/Intake Manifold/Service and Repair
c. Remove the air cleaner bracket.
d. Remove the TCM. See: Relays and Modules - Transmission and Drivetrain/Relays and Modules - A/T/Control Module/Service and
Repair/TCM Removal/Installation - AW6A-EL
e. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
f.
Drain the ATF into a separate suitable container. See: Transmission and Drivetrain/Automatic Transmission/Transaxle/Service and
Repair/Procedures/Automatic Transaxle Fluid (ATF) Replacement - AW6A-EL
g. Disconnect the oil hose from the transaxle.
h. Remove the oil pipe. See: Transmission and Drivetrain/Automatic Transmission/Transaxle/Transmission Cooler/Service and Repair/Removal
and Replacement/Oil Cooler Removal/Installation - AW6A-EL
i.
Remove the control valve body cover.
j.
Remove the control valve body. See: Transmission and Drivetrain/Automatic Transmission/Transaxle/Valve Body/Service and
Repair/Removal and Replacement/Control Valve Body Removal/Installation - AW6A-EL

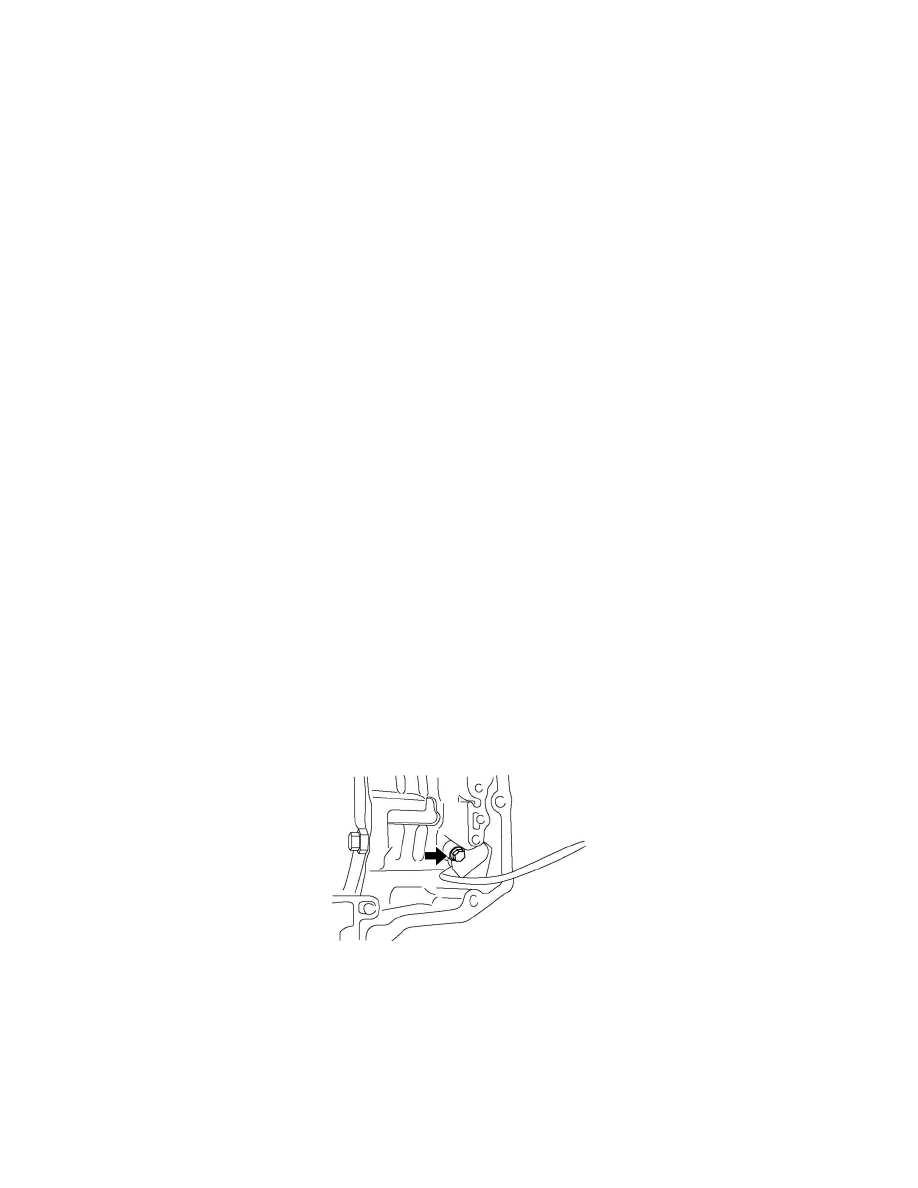

2. Remove the input/turbine speed sensor.
3. Install the input/turbine speed sensor.
Tightening torque
-
3.9-6.9 Nm {40-70 kgf-cm, 35-61 in-lbf}
4. Install the control valve body. See: Transmission and Drivetrain/Automatic Transmission/Transaxle/Valve Body/Service and Repair/Removal and
Replacement/Control Valve Body Removal/Installation - AW6A-EL
5. Install the control valve body cover.
6. Install the oil pipe. See: Transmission and Drivetrain/Automatic Transmission/Transaxle/Transmission Cooler/Service and Repair/Removal and
