6 L4-2.5L (2010)
Gear Sensor/Switch: Service and Repair
NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R]
1. Disconnect the negative battery cable.
2. Remove the battery and battery tray. See: Starting and Charging/Battery/Service and Repair/Removal and Replacement
3. Remove the aerodynamic under cover No.2. See: Body and Frame/Splash Guard/Service and Repair/Aerodynamic Under Cover No.2
Removal/Installation
4. Drain the oil from the transaxle. See: Transmission and Drivetrain/Manual Transmission/Transaxle/Service and Repair/Removal and
Replacement/Transaxle Oil Replacement - G66M-R

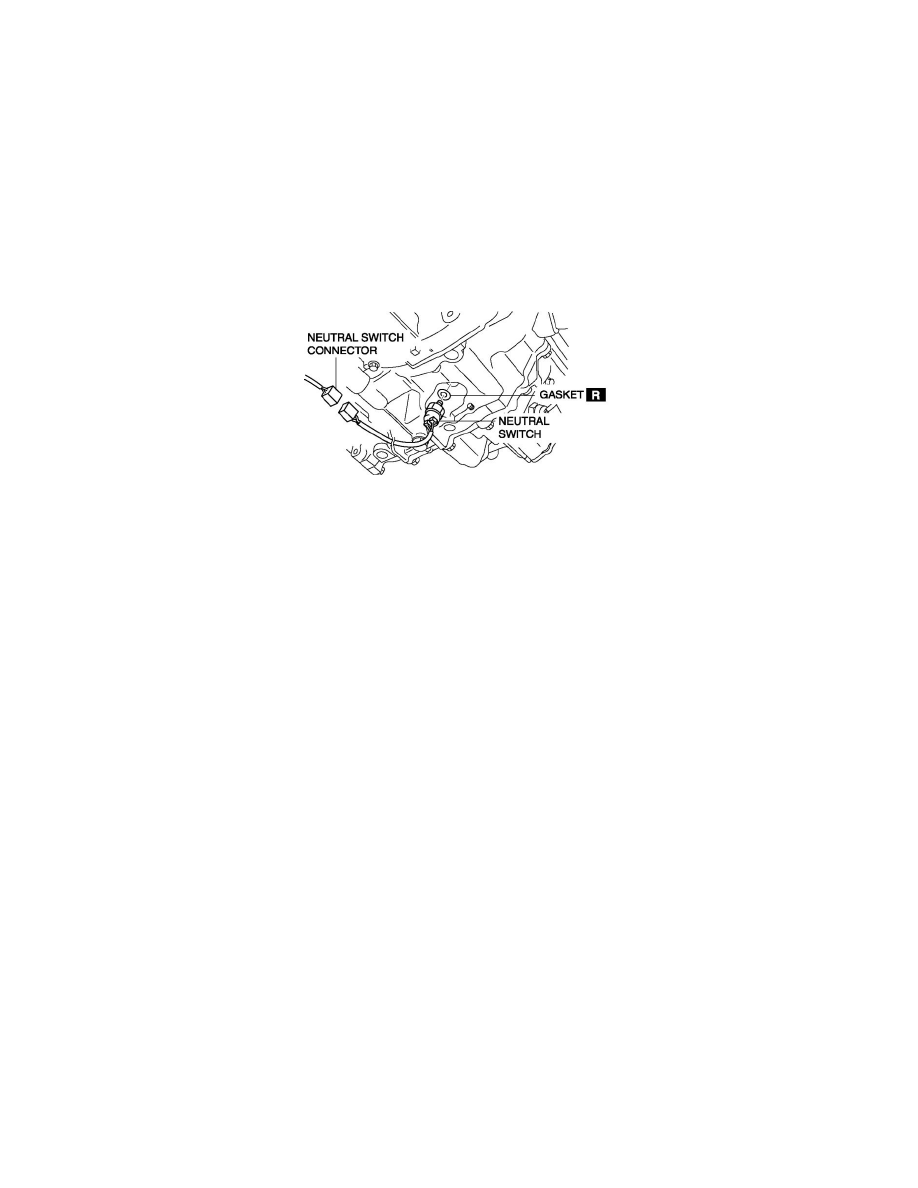

5. Disconnect the neutral switch connector and remove the neutral switch.
6. Install the neutral switch (with a new gasket) to the transaxle case.
Tightening torque
-
20-29 Nm {2.0-2.9 kgf-m, 15-21 ft-lbf}
7. Install the battery and battery tray. See: Starting and Charging/Battery/Service and Repair/Removal and Replacement
8. Add the specified amount and type of oil. See: Transmission and Drivetrain/Manual Transmission/Transaxle/Service and Repair/Removal and
Replacement/Transaxle Oil Replacement - G66M-R
9. Install the aerodynamic under cover No.2. See: Body and Frame/Splash Guard/Service and Repair/Aerodynamic Under Cover No.2
Removal/Installation
