6 L4-2.5L (2010)

Page 4
background image

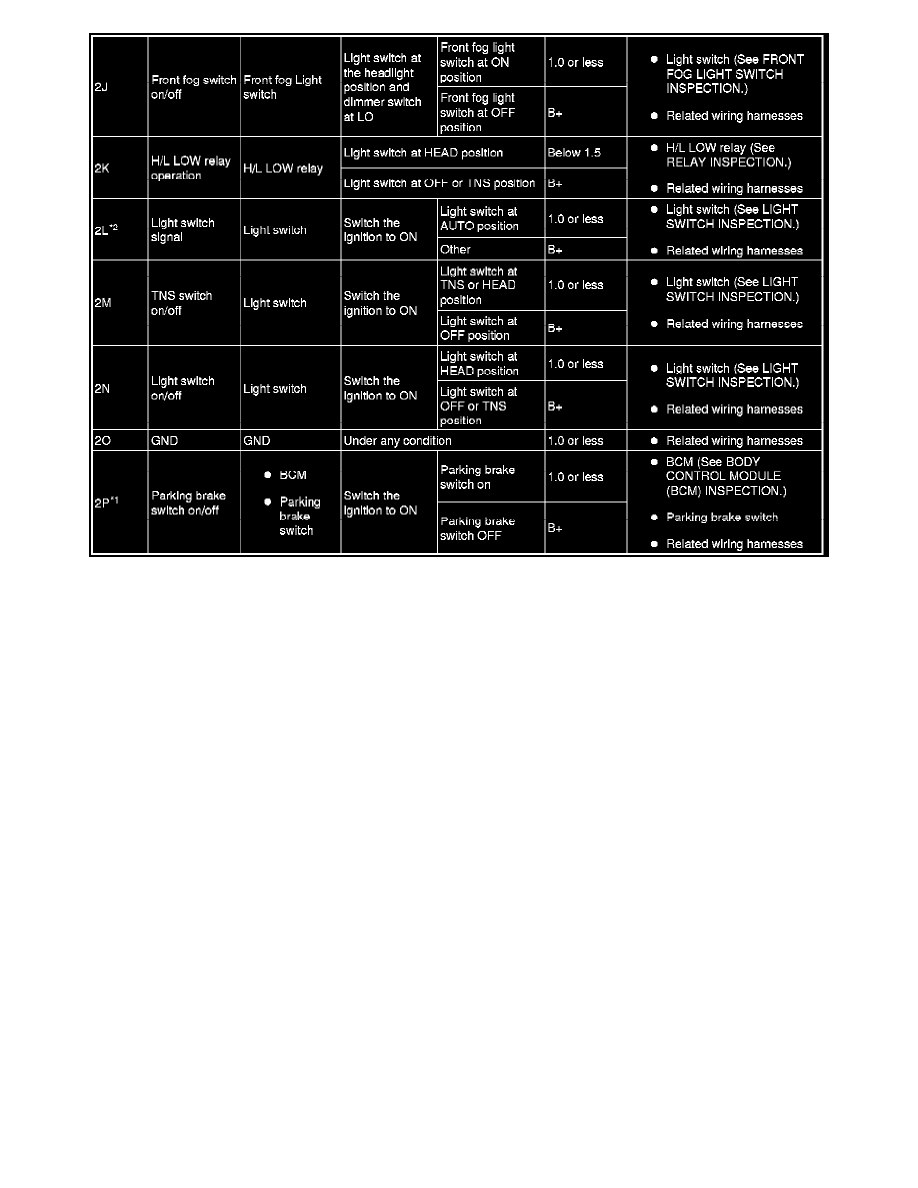

Terminal Voltage List (Reference) (Part 3)

*1

For vehicles with DRL only.

*2

With auto light system
