6 L4-2.5L (2010)

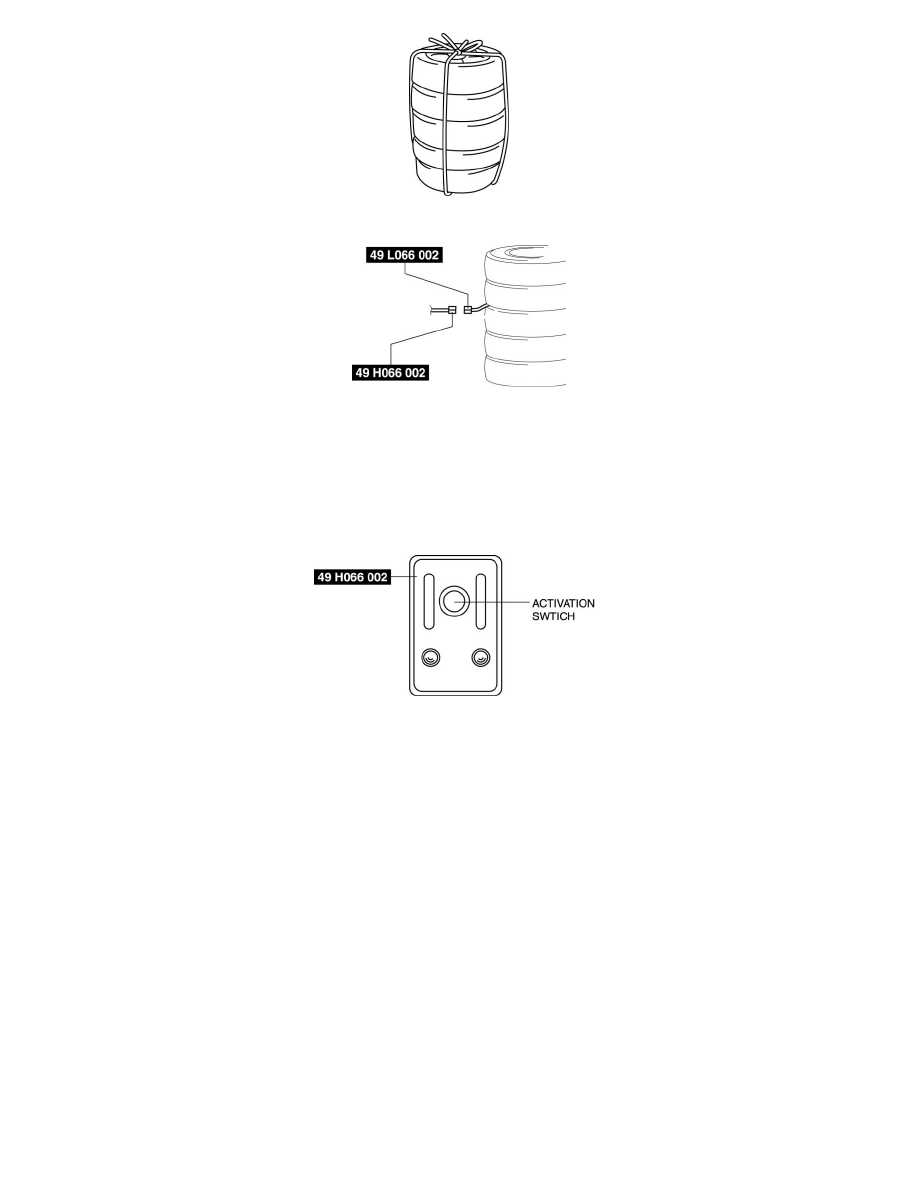

8. Connect the SST (Deployment tool) to the SST (Adapter harness).
9. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the
negative battery terminal.
10. Verify that the red lamp on the SST (Deployment tool) is illuminated.
11. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.
12. Press the activation switch on the SST (Deployment tool) to operate (deploy) the pre-tensioner seat belt.
WARNING:
-
The pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the pre-tensioner seat belt for
at least 15 min after deployment.
13. Disconnect the SST (Deployment tool) from the SST (Adapter harness).
Air Bag Module And Pre-Tensioner Seat Belt Disposal Procedures
AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES
WARNING:
-
A live (undeployed) air bag module or pre-tensioner seat belt may accidentally operate (deploy) when it is disposed of and cause serious injury.
Always refer to the "AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES" and dispose of air bag
modules and pre-tensioner seat belts in a deployed condition.
-
The air bag modules and the pre-tensioner seat belts are very hot immediately after they are deployed. You can be burned. Do not touch an air bag
module and pre-tensioner seat belt for at least 15 min after deployment.
-
Pouring water on the deployed air bag module and pre-tensioner seat belt is dangerous. The water will mix with the residual gases to form a gas
that can make breathing difficult. Do not pour water on the deployed air bag module and pre-tensioner seat belt.
-
The deployed air bag module or pre-tensioner seat belt may contain deposits of sodium hydroxide, a caustic byproduct of the gas-generated
combustion. If this substance gets into your eyes or on your hands, it can cause irritation and itching. When handling the deployed air bag module
and pre-tensioner seat belt, wear gloves and safety glasses.
-
Due to the adoption of 2-step deployment control in both the driver and passenger-side air bag modules, depending on the impact force, it is
possible that inflator No.2 might not operate (deploy). Before disposing of the air bag module, always follow the inflator deployment procedures
and verify the complete operation (deployment) of inflators No.1 and 2.
