Page 7
background image

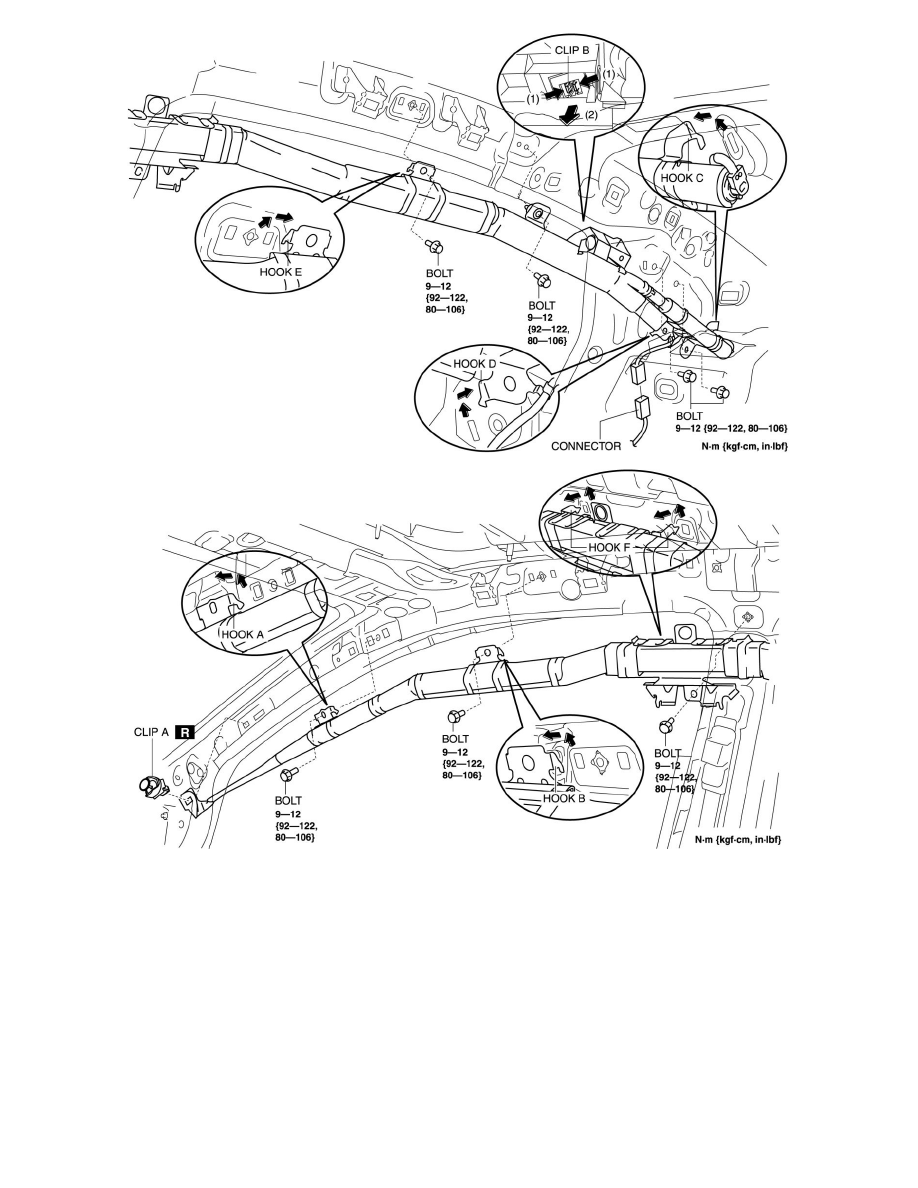

13. Remove the bolts.

14. Remove the clip A.

15. Pull hook A in the direction shown in the figure and remove it from the body.

16. Pull hook B in the direction shown in the figure and remove it from the body.

17. Pull hook C in the direction shown in the figure and remove it from the body.

18. Pull hook D in the direction shown in the figure and remove it from the body.

19. Pull clip B in the direction shown in the figure and remove it from the body.

20. Pull hook E in the direction shown in the figure and remove it from the body.
