6 L4-2.5L (2010)
Air Bag Control Module: Service and Repair
SAS CONTROL MODULE REMOVAL/INSTALLATION
WARNING:
-
Handling the SAS control module or air bag module improperly can accidentally deploy the air bag modules and pre-tensioner seat belt, which
may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. See: Air Bag
Systems/Service Precautions/Air Bag System Service Warnings See: Air Bag Systems/Service Precautions/Air Bag System Service Cautions
-
If the connector is connected and the ignition switch is turned to the ON position with the SAS control module not secured completely using the
installation nuts, the SAS control module may detect a degree of impact even when something contacts it lightly, deploying the air bag module and
pre-tensioner seat belt accidentally.
CAUTION:
-
When replacing the SAS control module, always perform the configuration procedure before removing the SAS control module. If the
configuration is not performed and the SAS control module is removed, DTC U2100:00 will be displayed.
-
If for any reason the configuration is not completed normally, DTC U0300:00 will be displayed in addition to DTC U2100:00.
1. Perform SAS control module configuration when replacing it. See: Testing and Inspection
2. Switch the ignition to off.
3. Disconnect the negative battery cable and wait for 1 min or more.

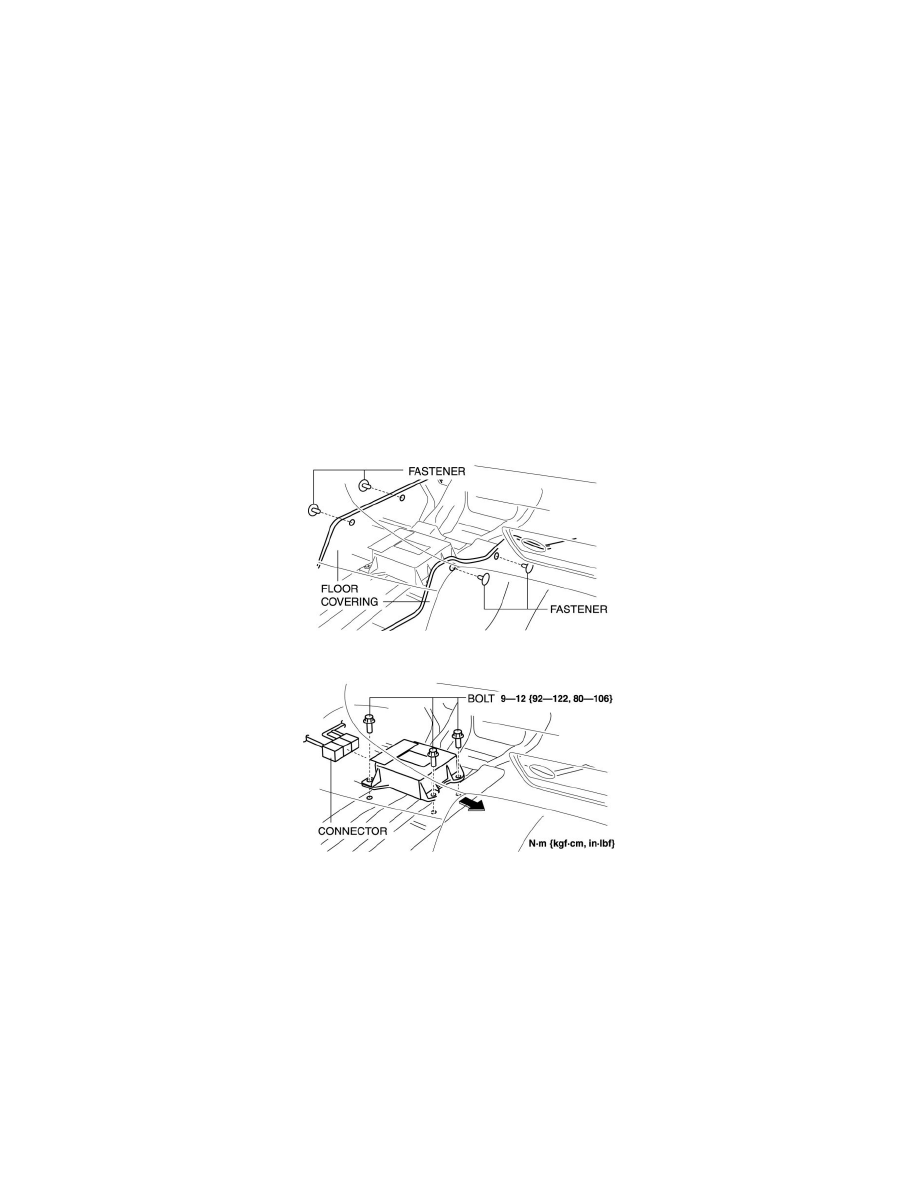

4. Remove the fasteners shown in the figure and partially peel back the floor covering so that the SAS control module can be removed.
5. Disconnect the connectors.
6. Remove the bolts.
7. Remove the SAS control module in the direction of the arrow shown in the figure.
8. Install in the reverse order of removal.
9. Switch the ignition to ON.
10. Verify that the air bag system warning light illuminates for approx. 6 s and goes out.
-
If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection
of the system. See: Air Bag Systems/Testing and Inspection/Initial Inspection and Diagnostic Overview/Flowchart
