6 L4-2.5L (2010)
g. Side panel See: Body and Frame/Interior Moulding / Trim/Trim Panel/Service and Repair/Side Panel Removal/Installation
h. Shift knob (MTX) See: Transmission and Drivetrain/Manual Transmission/Transaxle/Shifter M/T/Service and Repair
i.
Shift panel See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair/Removal and Replacement/Shift Panel
Removal/Installation
j.
Center panel lower See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Removal and
Replacement/Center Panel Lower Removal/Installation
k. Audio unit See: Accessories and Optional Equipment/Radio, Stereo, and Compact Disc/Service and Repair/Audio Unit Removal/Installation
l.
Passenger-side air bag module See: Air Bag Systems/Air Bag/Service and Repair/Removal and Replacement/Passenger-Side Air Bag Module
Removal/Installation

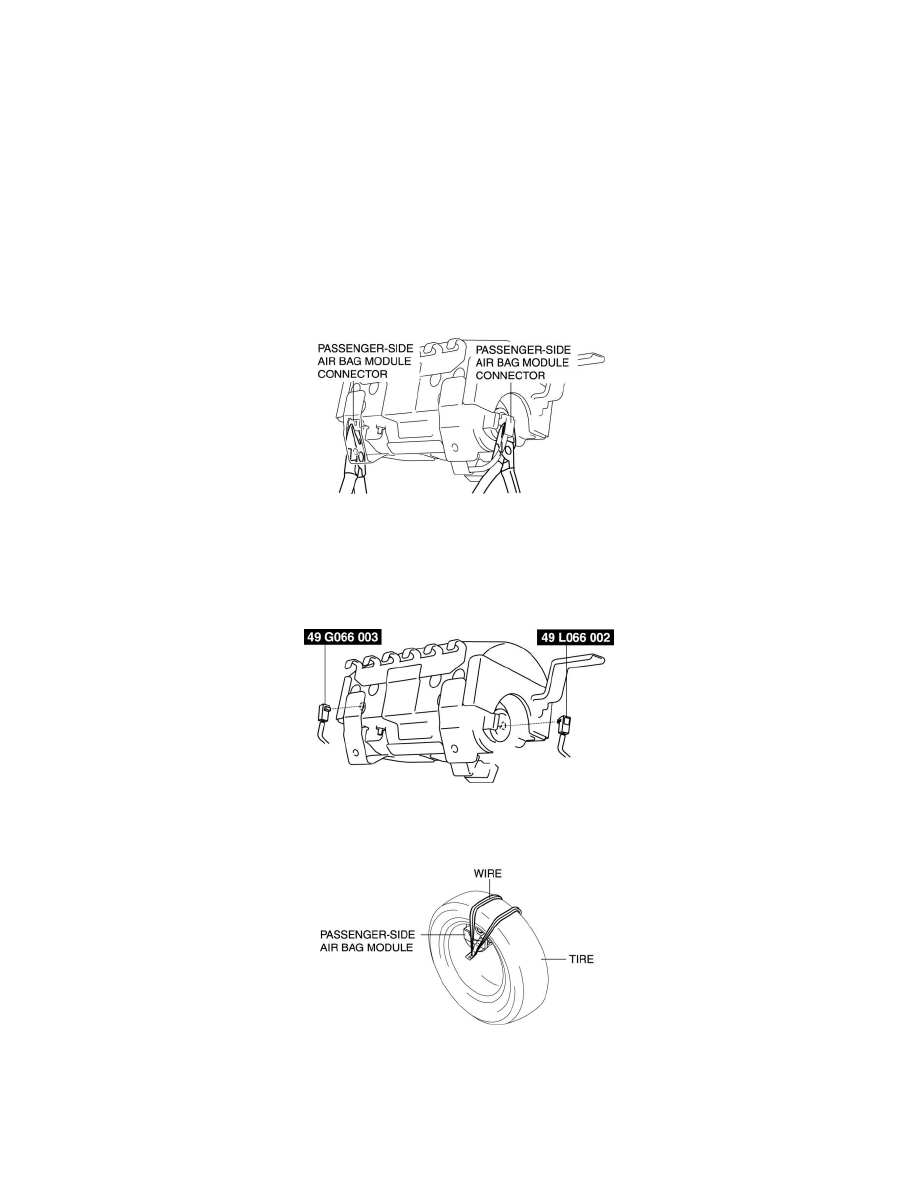

2. Using nippers, disconnect the passenger-side air bag module connector as shown in the figure.
CAUTION:
-
When disconnecting the passenger-side air bag module connector, pull it out straight, but do not rotate it. If it is rotated or pulled out at an angle
and the terminals are damaged, the SST (adapter wiring harness) may not be connected and the passenger-side air bag module may not operate
(deploy).

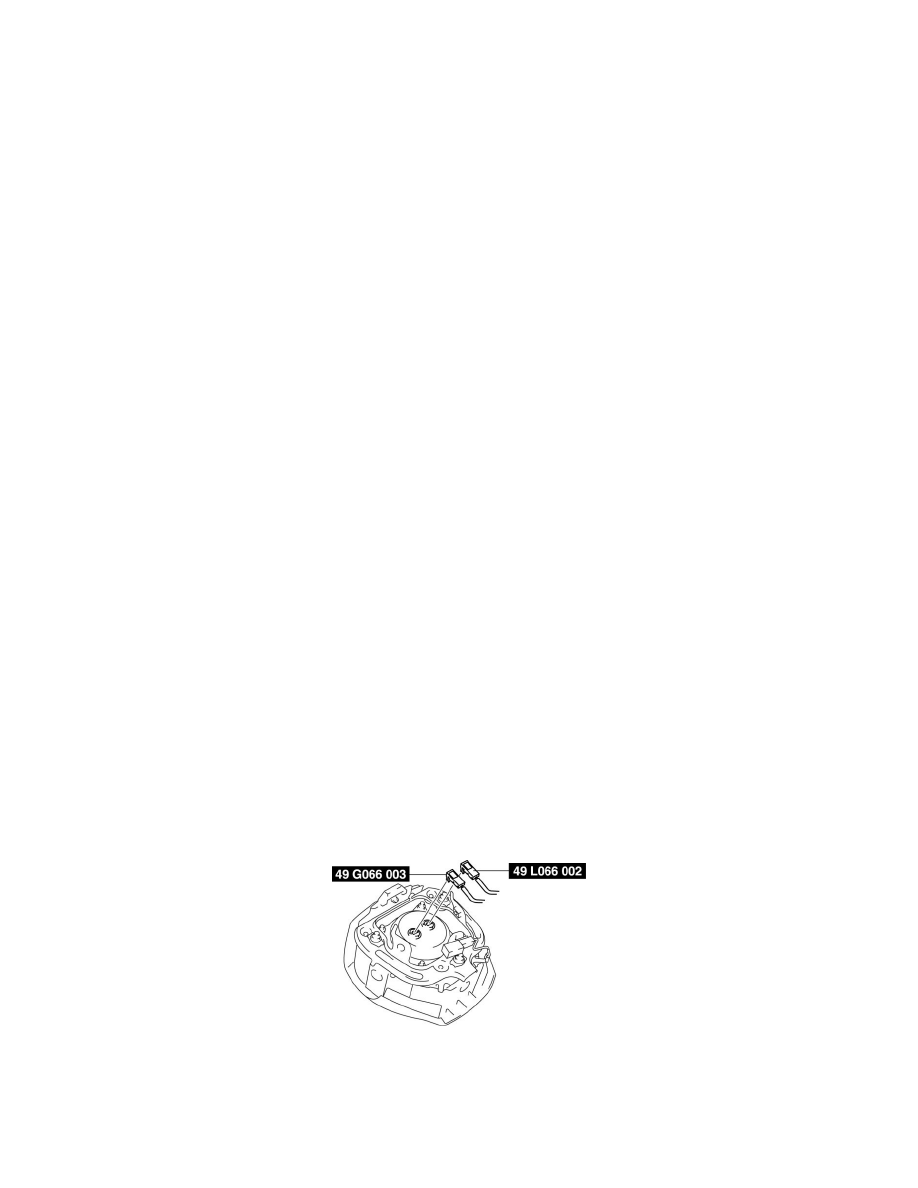

3. Connect the SSTs (Adapter harness) to the passenger-side air bag module as shown in the figure.
4. Place the padded surface of the passenger-side air bag module facing the center of the tire as shown in the figure. To secure the air bag module to
the tire wheel, wrap a wire (cross 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the
figure.
WARNING:
-
If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious
injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.
5. Stack the tire with the passenger-side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the
passenger-side air bag module, and then stack another tire with a wheel on the very top.
