6 L4-2.5L (2010)
WARNING:
-
If the air bag module is not properly installed to the tire, serious injury may occur when the module is operated (deployed). Make sure to install
the air bag module securely.

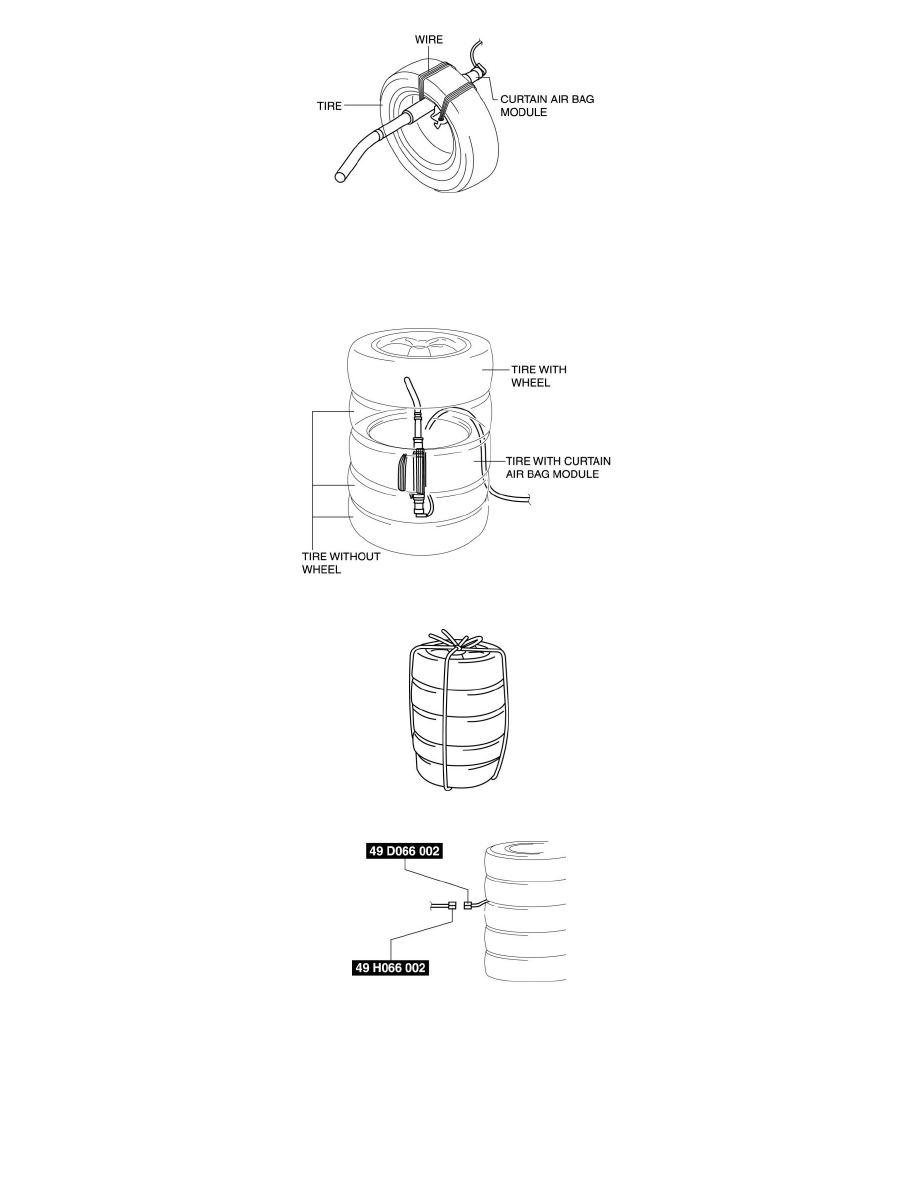

14. Stack the tire with the curtain air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the curtain air
bag module, and then stack another tire with a wheel on the very top.
15. Secure the tires with wire.
16. Connect the SST (Deployment tool) to the SST (Adapter harness).
17. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the
negative battery terminal.
18. Verify that the red lamp on the SST (Deployment tool) is illuminated.
19. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.
20. Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.
