6 L4-2.5L (2010)
Wheel Speed Sensor: Service and Repair
Rear ABS Wheel-Speed Sensor Removal/Installation
Dynamic Stability Control
REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION
1. Remove or install the rear ABS wheel-speed sensor in the same order of vehicles with ABS/TCS. See:
Traction Control System
REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION
1. Remove the rear seat cushion. See: Body and Frame/Seats/Seat Cushion/Service and Repair/Rear Seat Cushion Removal/Installation
2. Remove the rear side seat back. See: Body and Frame/Seats/Service and Repair/Overhaul/Rear Side Seat Back Removal/Installation
3. Remove the trunk end trim. See: Body and Frame/Interior Moulding / Trim/Scuff Plate/Service and Repair/Trunk End Trim Removal/Installation
4. Remove the trunk side trim.
5. Disconnect the rear ABS wheel-speed sensor connector.

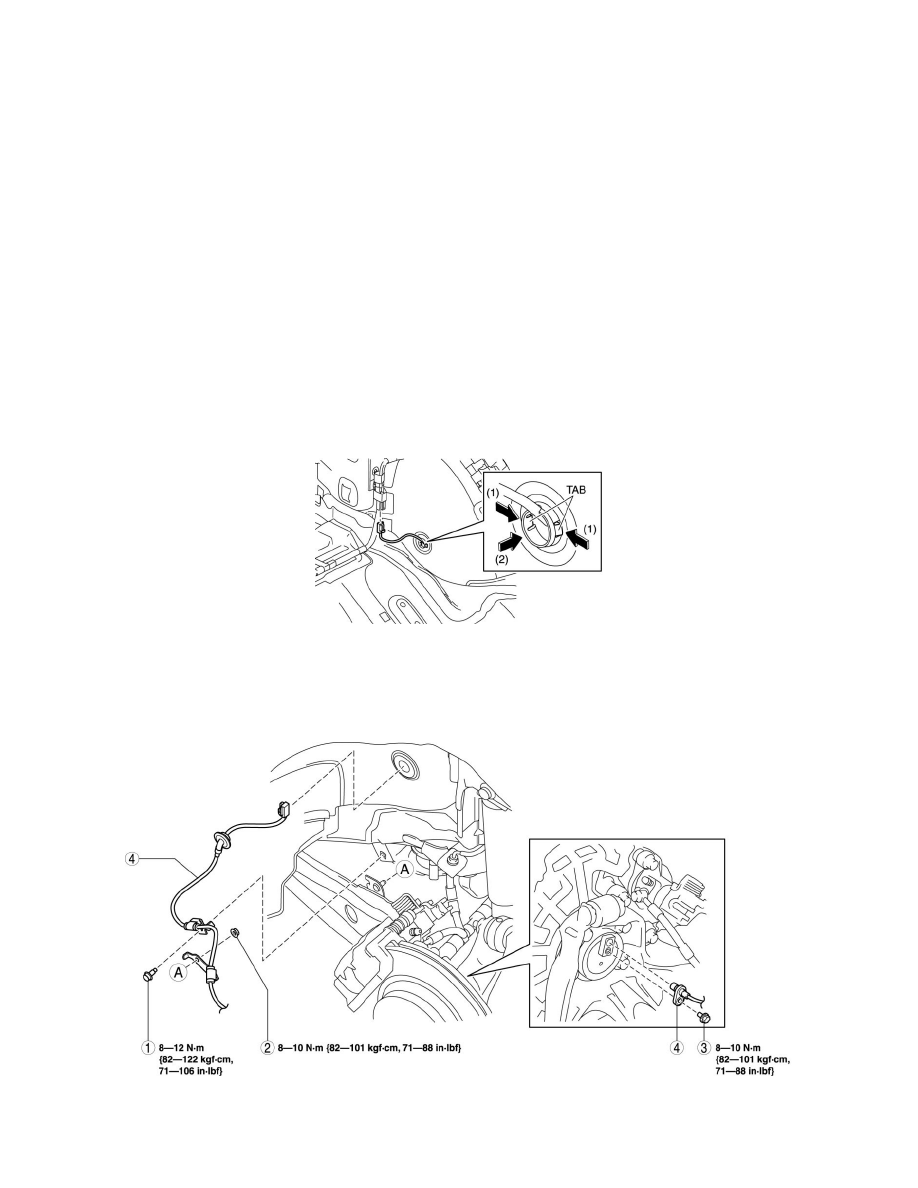

6. Press the rear ABS wheel-speed sensor tabs and press out the sensor toward the outside of the vehicle.
7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.
