6 L4-2.5L (2010)
Headlamp Switch: Testing and Inspection
LIGHT SWITCH INSPECTION
Vehicles Without Auto Light System
1. Disconnect the negative battery cable.
2. Remove the column cover. See: Steering and Suspension/Steering/Steering Column/Steering Column Cover/Service and Repair
3. Remove the light switch. See: Service and Repair

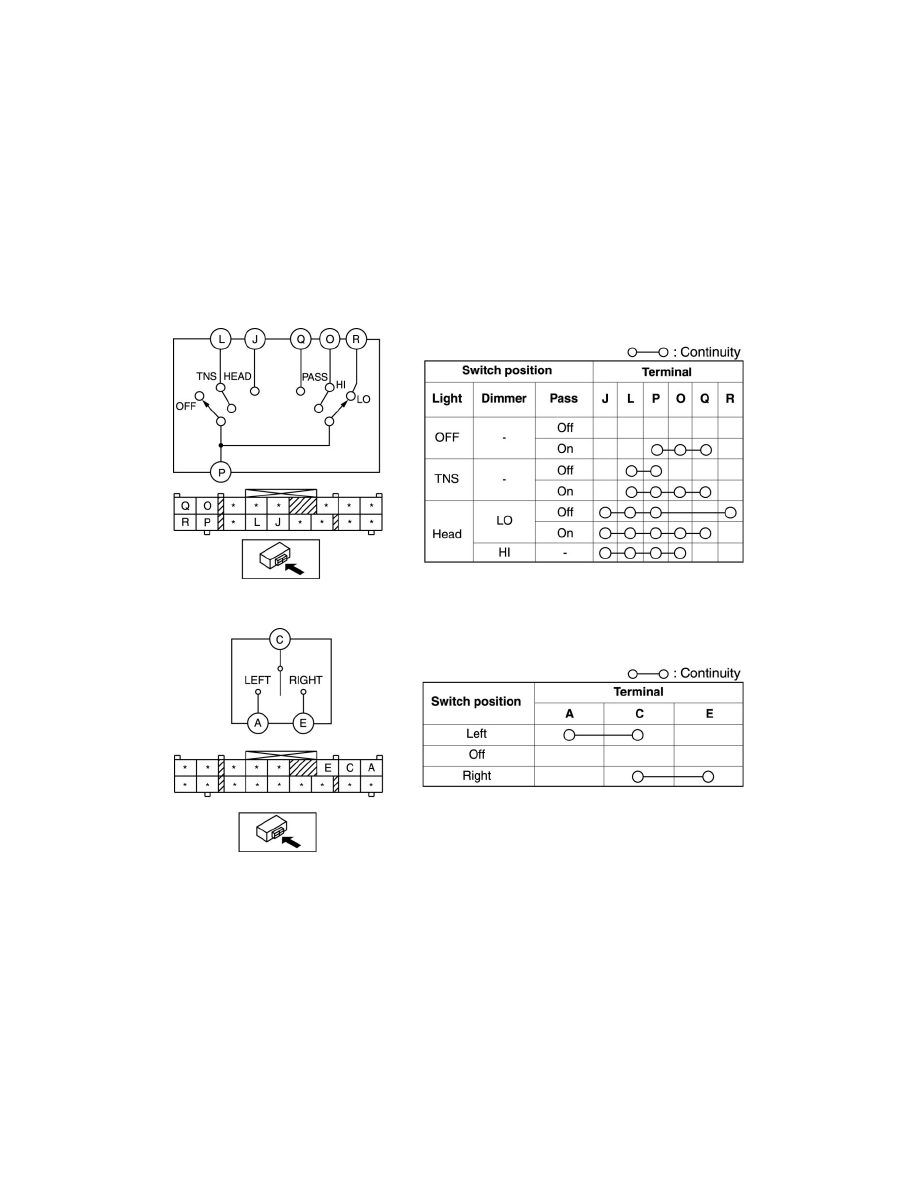

4. Verify that the continuity between the light switch terminals is as indicated in the table.
-
If not as indicated in the table, replace the light switch.
Headlight Switch
Turn Light
Vehicles With Auto Light System
1. Disconnect the negative battery cable.
2. Remove the column cover. See: Steering and Suspension/Steering/Steering Column/Steering Column Cover/Service and Repair
3. Remove the light switch. See: Service and Repair
4. Verify that the continuity between the light switch terminals is as indicated in the table.
-
If not as indicated in the table, replace the light switch.
Headlight Switch
