6 L4-2.5L (2010)
-

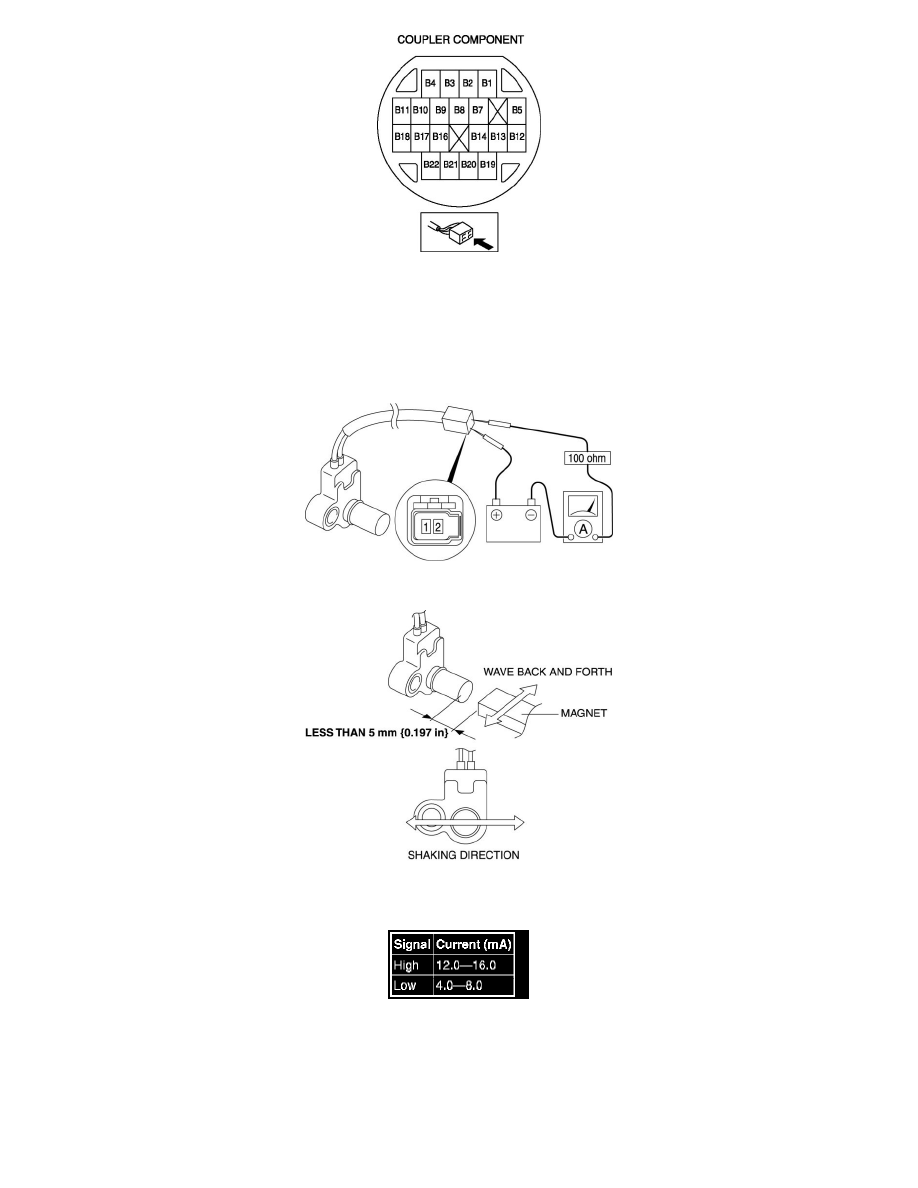

If there is no continuity, inspect the coupler component.
-
If the coupler component is normal, replace the VSS. See: Service and Repair/Vehicle Speed Sensor (VSS) Removal/Installation - AW6A-EL
Off-Vehicle Inspection
1. Connect the VSS terminal 2 to the battery positive terminal, connect the battery negative terminal to VSS terminal 1 through an ammeter set to a
resistance of 100 ohm.
2. Measure the current while waving a magnet back and forth over the top of the VSS (less than 5 mm {0.197 in}).
-
If there is any malfunction, replace the VSS. See: Service and Repair/Vehicle Speed Sensor (VSS) Removal/Installation - AW6A-EL
VSS specification
