Page 1

background image

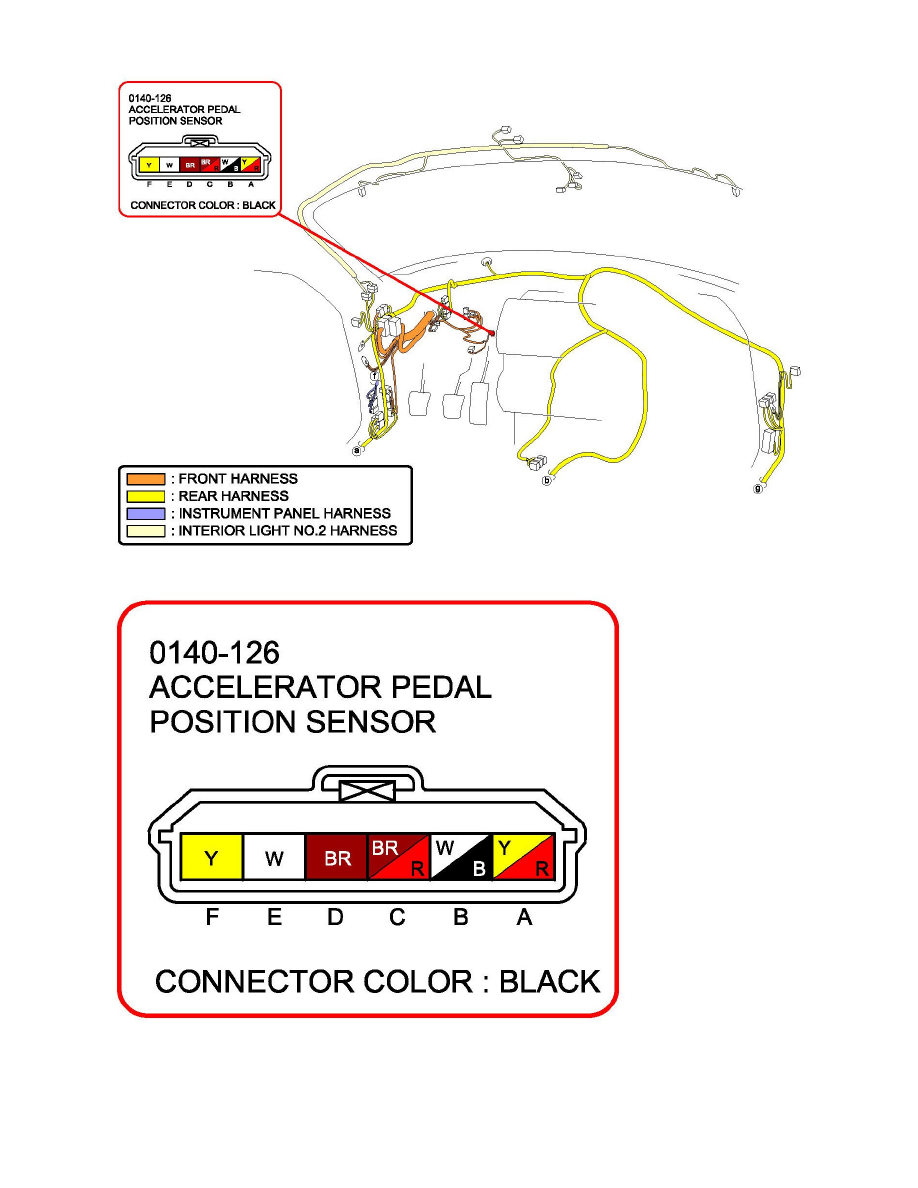

Accelerator Pedal Position Sensor: Connector Locations

Accelerator Pedal Position Sensor

Sensors and Switches
Sensors and Switches - Powertrain Management
Sensors and Switches - Fuel Delivery and Air Induction / Accelerator Pedal Position Sensor / Component Locations
Page 986
