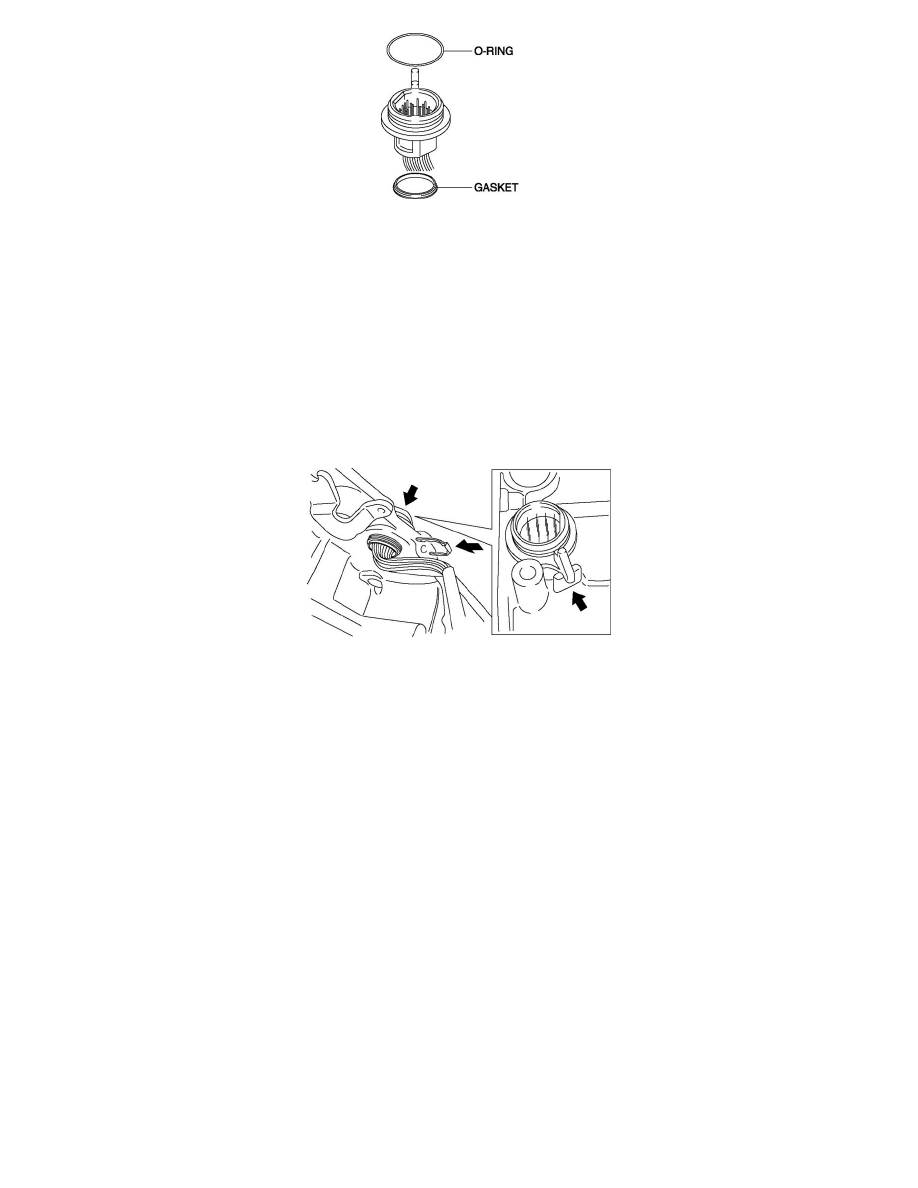

5. Apply ATF to a new gasket and install it on the coupler component.
CAUTION:
-
Do not apply ATF to the O-ring.
6. Install a new O-ring to the coupler component.
CAUTION:
-
Do not apply too much force to the coupler component.
-
Do not damage the coupler component.
7. Install the coupler component to the transaxle case.
8. Install a new coupler component lock plate.
9. Install the control valve body. See: Transmission and Drivetrain/Automatic Transmission/Transaxle/Valve Body/Service and Repair/Removal and
Replacement/Control Valve Body Removal/Installation - AW6A-EL
10. Install the control valve body cover.
11. Install the oil pipe. See: Transmission and Drivetrain/Automatic Transmission/Transaxle/Transmission Cooler/Service and Repair/Removal and
Replacement/Oil Cooler Removal/Installation - AW6A-EL
12. Connect the oil hose to the transaxle.
13. Add the ATF. See: Transmission and Drivetrain/Automatic Transmission/Transaxle/Service and Repair/Procedures/Automatic Transaxle Fluid
(ATF) Replacement - AW6A-EL
14. Install the TCM. See: Powertrain Management/Transmission Control Systems/Relays and Modules - Transmission and Drivetrain/Relays and
Modules - A/T/Control Module/Service and Repair/TCM Removal/Installation - AW6A-EL
15. Install the air cleaner bracket.
16. Install the air cleaner component. See: Engine, Cooling and Exhaust/Engine/Intake Manifold/Service and Repair
17. Connect the negative battery cable.
18. Perform the "Mechanical System Test". See: Powertrain Management/Transmission Control Systems/Testing and Inspection/Initial Inspection and
Diagnostic Overview/Mechanical System Test - AW6A-EL
